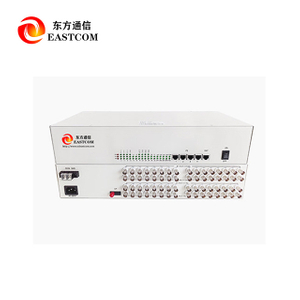

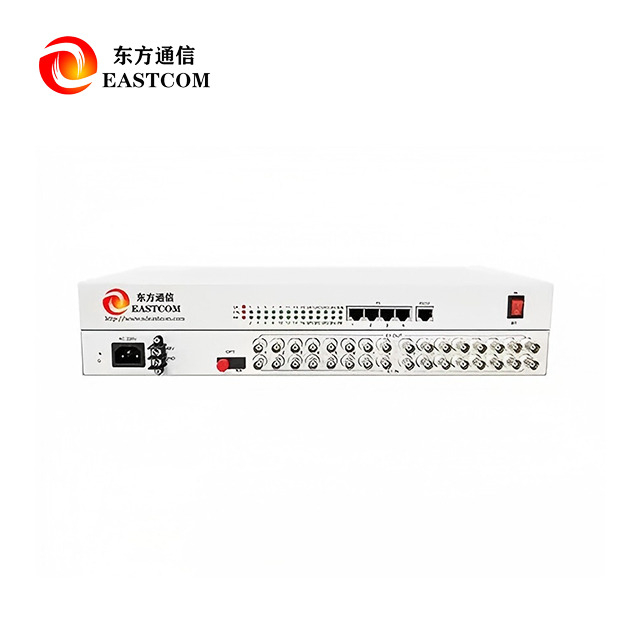

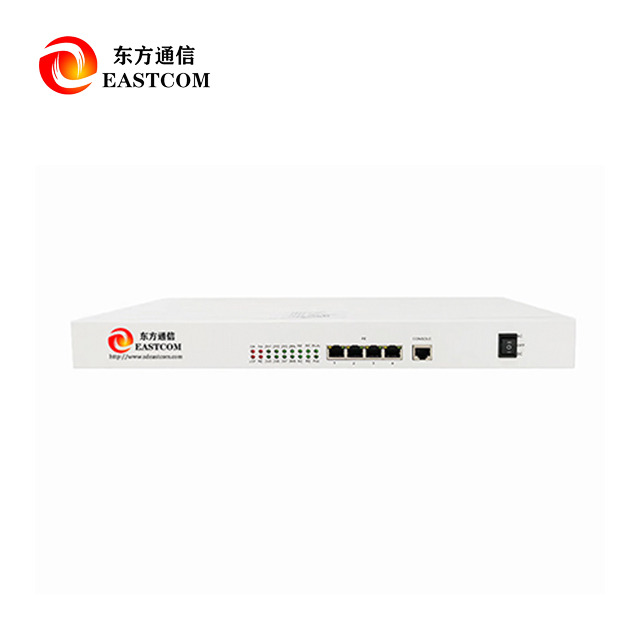

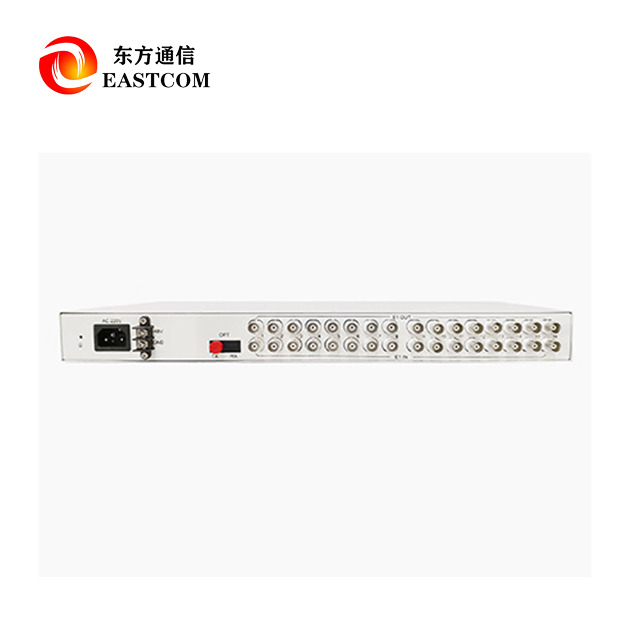

16E1 PDH Fiber Multiplexe

Product Advantage

• High Reliability, Low Power – Uses large‑scale integrated circuitry and integrated optical transceiver components for long‑life, low‑power operation.

• Fully Digital Architecture – No analog trim pots; no on‑site manual calibration. Improves stability, repeatability, and field reliability.

• Flexible Ethernet Aggregation – Supports 1/2/4/6 Ethernet channels alongside 16 E1 links for mixed TDM + packet service transport.

• Rich Optical Options – Single‑fiber / dual‑fiber choices; multiple wavelengths (1310 / 1550 / 1490nm SM; 850 / 1310nm MM) and optical power levels; distances up to 120 km.

• Wide Power Input Range – AC 165–265V or DC ‑36 to ‑72V. Dual‑power models available for protected installations.

• Carrier‑Class Interface Compliance – E1 meets ITU‑T G.703; jitter/wander performance per G.704 / G.823.

• Deployment Versatility – Available in 19" 1U rack‑mount or desktop versions for central office, cabinet, or edge environments.

Technical Parameters

Optical Interface

• Fiber Type: Single‑mode (1310 / 1550 / 1490nm); Multi‑mode (850 / 1310nm)

• Line Coding: NRZ + scrambling / mBnB (when carrying Ethernet)

• Transmit Power: ≥ –12 dBm (model dependent)

• Connector Options: SC / FC / LC

• Fiber Mode: Single‑fiber (WDM) or dual‑fiber (Tx/Rx)

• Reach: 0–120 km (optical module selectable)

E1 Interface

• Quantity: 16 × E1

• Line Rate: 2.048 Mbps ±50 ppm

• Coding: HDB3

• Standards: ITU‑T G.703; jitter per G.704 / G.823

• Impedance: 75Ω (unbalanced) / 120Ω (balanced) selectable

• Connectors: BNC (75Ω), RJ45 or DB37 (120Ω)

Ethernet Interface

• Channel Options: 1 / 2 / 4 / 6 ports (configurable)

• Standards: IEEE 802.3 / 802.3u / 802.3ab

• Speeds: 10/100M auto‑negotiation; selected builds support 100/1000M auto‑negotiation

• Duplex: Auto full / half

• Auto‑MDI/MDIX: Yes (crossover/straight‑through auto detection)

• Connector: RJ45

Power & Environmental

• Input Power: AC 165–265V; DC –36V to –72V

• Dual Power: Optional redundant AC+DC or DC+DC configurations

• Power Consumption: <15W typical build (16E1); higher‑density variants <30W (e.g., 30E1/63E1 family models)

• Operating Temperature: –10°C to +45°C

• Humidity: ≤95% non‑condensing

Mechanical

• Form Factor: 19" 1U rack‑mount chassis or desktop enclosure

• Mounting: Front or rear fiber access options available (custom)

Product Uses

• Program-Controlled Switch Interconnection

Utilize 16E1 optical transmission to interconnect multiple program-controlled switching systems across sites, reducing copper cable maintenance costs.

• Mobile Communication Base Station Backhaul

Integrate E1 backhaul from BTS or NodeB sites with data services over the optical backbone.

• Video Conferencing / Security Surveillance

Transmit multiple E1 channels and Ethernet for applications combining video and voice, ideal for government meetings and large-scale monitoring projects.

• Power and Energy Dispatch Communication

Enable mixed transmission of E1 dispatch channels and IP monitoring networks between substations, power plants, and pipeline sites.

• Government and Military Private Networks

Provide secure, interference-resistant, long-distance optical fiber transmission for dedicated voice, dispatch, and data services.

• Industrial Parks / Utility Tunnels

Replace traditional copper cabling in complex environments, achieving highly reliable multi-service transmission over a single fiber.

FAQ

Q1: Can the number of Ethernet channels be customized?

A: Yes. Standard models support 1/2/4/6 Ethernet ports; additional customized mappings are available upon request.

Q2: Does the device support mixed balanced and unbalanced E1 wiring?

A: Yes. Both 75Ω (BNC) and 120Ω (RJ45/DB37) options are supported; selectable at order build.

Q3: What’s the longest supported transmission distance?

A: Up to 120 km with appropriate singlemode optics and fiber quality.

Q4: Is dual power input supported?

A: Yes. AC + DC or dual DC redundancy builds are available to enhance reliability.

Q5: Can it interoperate with other vendors’ PDH equipment?

A: The E1 interface follows ITUT G.703 and related standards, enabling interoperability with most carriergrade PDH systems.

Q6: Does it support inservice maintenance or hotswappable optics?

A: Many configurations support fieldreplaceable optical modules; please confirm hotswap capability for your selected chassis revision.

Q7: Is Ethernet traffic switched or just transported?

A: Default models provide transparent Ethernet transport (mapping over PDH/optical payload); valueadded switching models available per project request.
