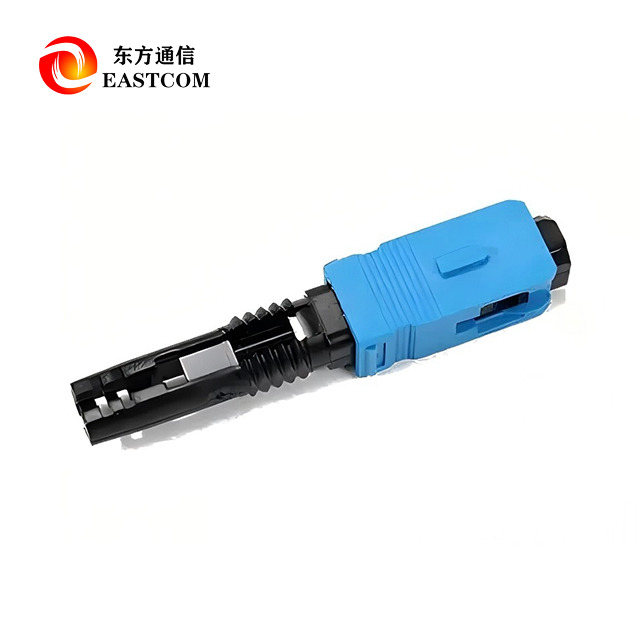

SC UPC Fiber Optic Quick Connector

Product Advantage

• Easy Installation – No epoxy, polishing, or crimping required; saves time and labor costs.

• Low Insertion Loss – ≤ 0.3dB for superior transmission performance and low signal attenuation.

• High Return Loss – ≥ 55dB ensures excellent signal integrity and network stability.

• Reusable & Durable – Engineered for multiple installations and long-term reliability.

• Universal Compatibility – Ideal for FTTH drop cables, indoor wiring, WLAN, Wiegand systems, WiFi, and 4G networks.

• Compact & Lightweight – Dimensions: 2 × 1 × 1 cm, Weight: 0.005 kg for easy handling and portability.

Technical Parameters

• Model: Fast Connector Y04

• Connector Type: SC UPC / SC APC (Blue)

• Fiber Compatibility: Single-mode fiber

• Insertion Loss: ≤ 0.3dB

• Return Loss: ≥ 55dB

• Operating Temperature: -40°C ~ +75°C

• Dimensions: 2 × 1 × 1 cm

• Weight: 0.005 kg

• Origin: China

• Brand: Muchen / OEM available

Product Uses

• FTTH (Fiber to the Home): Quick termination for last-mile fiber connections.

• FTTB (Fiber to the Building): Easy installation for office and apartment fiber distribution.

• FTTX Networks: Flexible and efficient for industrial and enterprise applications.

• Emergency Repairs: Perfect for fast field termination without splicing machines.

• Network Systems: Applicable in WLAN, Wiegand access control, WiFi, and 4G setups.

FAQ

Q1: Do I need a fusion splicer to install this connector?

A: No, the connector is designed for tool-free, field-installable applications.

Q2: Can it be reused after installation?

A: Yes, it is designed for durability and multiple uses.

Q3: Is it compatible with both UPC and APC?

A: This model is SC UPC, but SC APC options are also available upon request.

Q4: What type of fiber does it support?

A: It supports single-mode fiber, suitable for FTTH/FTTB/FTTX applications.

Q5: Can I order with custom branding?

A: Yes, OEM and branding customization are available.

Q5: How long does installation take?

A: Installation is very quick—typically within 1 to 2 minutes per connector.
