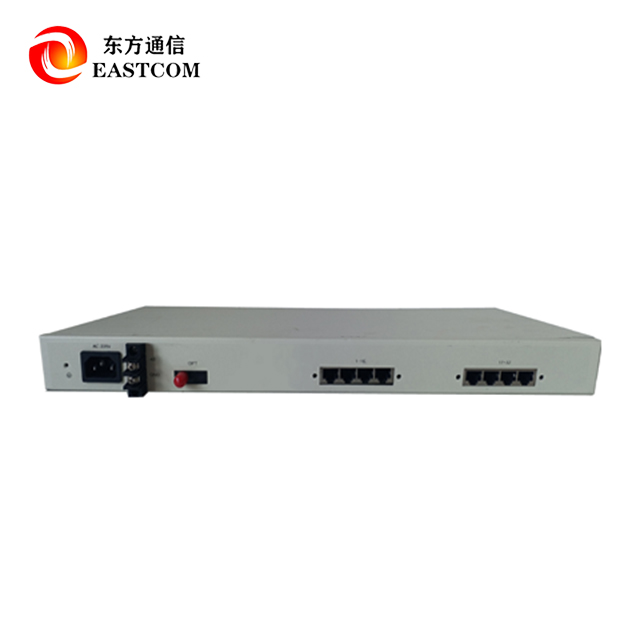

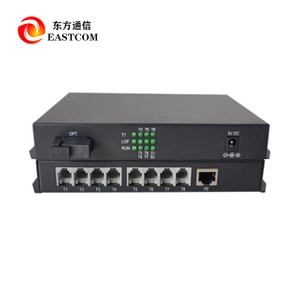

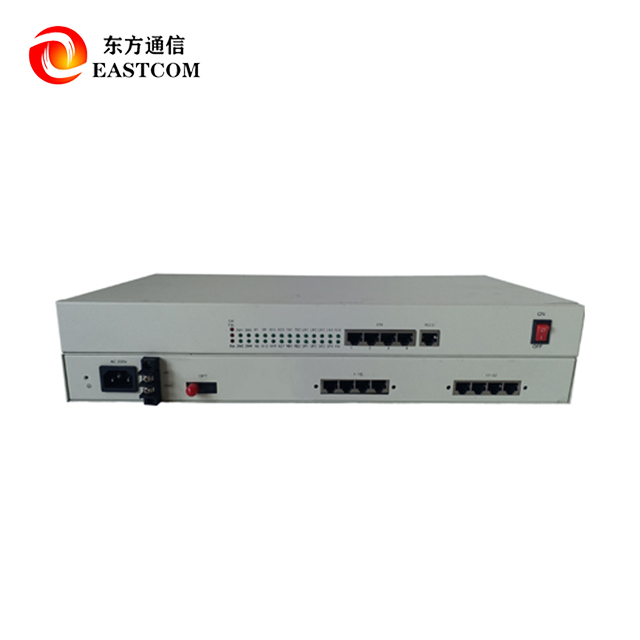

Telephone Optical Transceiver

Product Overview

As a premier manufacturer and direct supplier of advanced telecommunication equipment, we present the Telephone Optical Transceiver, engineered specifically for enterprise procurement and large-scale network deployments. This device acts as a unified communication hub, seamlessly multiplexing voice, data, and Ethernet signals over a single optical fiber to drastically reduce infrastructural complexity.

• Direct-from-manufacturer pricing ensures cost-effective bulk acquisitions.

• Consolidates FXS/FXO, Ethernet, E1, and RS232 into one unified stream.

• Modular, plug-and-play architecture for effortless scalability.

• Dual-redundant power supplies guarantee uninterrupted operation.

Product Specifications

Key Features & Highlights

Our Telephone Optical Transceiver is meticulously crafted to empower network architects with a versatile, high-performance tool that simplifies complex communication topologies. By prioritizing both structural integrity and advanced multiplexing algorithms, this equipment delivers unparalleled value to large-scale operational frameworks.

• Unified Service Delivery: Eliminates the need for disparate networks by combining legacy voice protocols with modern high-speed Ethernet and serial data, saving massive amounts on cabling and maintenance.

• High-Fidelity Audio: Utilizes advanced PCM lossless encoding to ensure that every voice call retains its natural timbre and clarity, free from the electronic artifacts common in lower-grade converters.

• Exceptional Build Quality: The heavy-duty metallic enclosure not only shields internal components from electromagnetic interference but also provides a premium, solid feel that reflects its industrial reliability.

• Intelligent Power Management: Features a highly responsive internal power distribution system that manages thermal output efficiently, keeping the unit cool to the touch even under maximum data loads.

• Customizable Port Configurations: Offers a highly adaptable interface array, allowing procurement specialists to specify the exact mix of FXS, FXO, and E1 ports required for their unique infrastructural demands.

Interface Configuration & Compatibility

Enterprise buyers consistently prioritize equipment that can seamlessly integrate with existing infrastructure without requiring a complete network overhaul. This transceiver is engineered specifically to protect your previous hardware investments while paving the way for modern upgrades. The satisfying snap of the RJ45 connectors and the secure locking mechanism of the BNC ports reflect a design ethos focused on absolute physical and digital compatibility.

• Broad Legacy Support: Flawlessly supports traditional FXS/FXO, magnet, hotline, and audio interfaces, ensuring that older PBX systems and analog phones remain fully operational.

• Modern Data Integration: Simultaneously multiplexes 10/100M or 100/1000M adaptive Ethernet, facilitating high-speed IP network expansion alongside legacy voice.

• Versatile E1 Connectivity: Accommodates BNC (75Ω unbalanced), RJ45 (120Ω balanced), and DB37/M connectors, adhering strictly to ITU-TG.703 standards for flawless PBX switchboard handshakes.

• Serial Data Inclusion: Incorporates RS232 data interfaces, making it incredibly easy to connect industrial control systems, telemetry devices, and legacy management consoles.

• Mixed Configuration Capability: Supports highly customized setups ranging from 1 to 32 voice channels and beyond, allowing network engineers to tailor the exact port matrix needed for specific site requirements.

Transmission Distance & Signal Fidelity

For cross-regional projects or remote engineering sites, signal degradation is a critical failure point. This transceiver leverages state-of-the-art optical fiber technology to guarantee that distance never compromises your communication quality. The underlying PCM lossless encoding ensures that the audio output sounds as immediate and clear as a conversation happening in the same room, while data streams maintain absolute integrity.

• Ultra-Long Reach: Depending on the selected optical module, this device pushes signals across vast expanses, easily achieving transmission distances from 0 up to an astonishing 120 kilometers.

• Pristine Voice Clarity: By digitizing voice signals before optical transmission, the device completely eradicates the static, attenuation, and crosstalk that plague long-distance copper lines.

• Zero-Packet-Loss Data: The robust NRZ+scrambling/mBnB optical line coding guarantees that Ethernet and RS232 data packets arrive perfectly intact, vital for precise industrial monitoring.

• Flexible Fiber Utilization: Supports both single-mode and multimode wavelengths, adapting effortlessly to your existing fiber optic cable inventory.

• WDM Single-Fiber Efficiency: By employing Wavelength Division Multiplexing technology, it achieves bidirectional transmission over a single core of fiber, effectively halving your optical cable deployment costs.

System Reliability & Redundancy

In industrial sectors and communication backbone networks, system downtime is entirely unacceptable. We have engineered this transceiver with a zero-tolerance approach to failure, ensuring that your core operations remain online 24/7. From the silent, instantaneous failover of its power circuits to the physical isolation of its data pathways, every component is selected for maximum endurance.

• Dual Power Redundancy: Equipped with dual power inputs for both 220V AC and -48V DC, allowing connection to two independent power grids simultaneously.

• Instantaneous Failover: In the event of a primary power drop, the internal circuitry switches to the backup supply automatically and silently, without dropping a single call or data packet.

• 1+1 Optical Protection: Supports advanced optical ring networks and 1+1 protection schemes, instantly rerouting traffic if a primary fiber line is severed.

• Physical Ethernet Isolation: Certain models offer dual-channel Ethernet with strict physical isolation, preventing broadcast storms or security breaches from crossing over critical network segments.

• Low Thermal Footprint: Operating at a power consumption of less than 15W to 30W (depending on the model), the device generates minimal heat, drastically extending the lifespan of the internal microprocessors.

Deployment & Networking Topology

Engineering contractors and network architects require solutions that adapt to the physical realities of the deployment site. This transceiver is defined by its architectural agility, offering a modular framework that slides effortlessly into standard server racks or sits securely on a desktop. Its design accelerates installation timelines and simplifies future network expansions.

• Versatile Topologies: Capable of operating in point-to-point, point-to-multipoint, or complex optical ring network architectures to suit diverse geographical layouts.

• High-Density 1U Design: Packs up to 32 telephone interfaces and multiple data ports into a remarkably slim 19-inch 1U chassis, preserving highly valuable server rack real estate.

• Hot-Swappable Modularity: The pluggable module design allows technicians to expand capacity or replace components on the fly, without powering down the entire communication node.

• On-Demand Configuration: Buy only the capacity you need today, with the peace of mind that the chassis can accommodate additional voice or data modules as your enterprise grows.

• Standardized Form Factor: The precisely engineered mounting brackets and standard dimensions ensure a frictionless installation experience for field technicians.

O&M and Fault Diagnosis

Reducing long-term operational and maintenance costs is a primary objective for enterprise procurement. We have designed this optical terminal to be as transparent and user-friendly as possible. When a technician steps into a dimly lit server room, the crisp, bright LED indicators on the front panel immediately communicate the health of every single port and power supply.

• True Plug-and-Play: Requires minimal initial configuration; simply connect the fiber, power, and terminal cables, and the device automatically establishes the communication link.

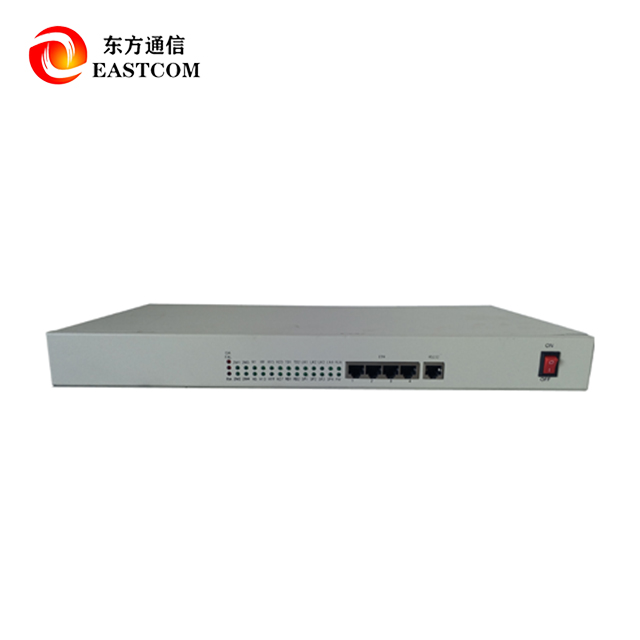

• Comprehensive Visual Diagnostics: The front panel is populated with a complete array of status LEDs, providing instant visual feedback on optical links, Ethernet activity, voice port status, and power health.

• Advanced Remote Management: Fully supports SNMP and Web-based remote management interfaces, allowing central IT teams to monitor device health, configure parameters, and diagnose issues from hundreds of miles away.

• Streamlined Troubleshooting: Clear indicator logic helps field engineers instantly isolate faults—whether it's a severed fiber, a disconnected phone line, or a power drop—drastically reducing mean time to repair (MTTR).

• Maintenance-Free Operation: The sealed chassis design and high-quality internal components minimize dust ingress and component wear, resulting in a device that rarely requires physical intervention.

Environmental Adaptability & Applications

Industrial and remote communication equipment rarely enjoys the luxury of a climate-controlled data center. This transceiver is built to endure, functioning flawlessly in environments that would cripple standard commercial hardware. Its robust engineering makes it the definitive choice for a wide array of demanding, specialized industry applications.

• Wide Temperature Tolerance: Operates reliably in extreme conditions, shrugging off the biting cold of -10°C border outposts and the stifling +45°C heat of unventilated industrial plant rooms.

• Military & Border Defense: Perfect for establishing highly secure, stable voice and data links between remote sentry posts and central command, meeting strict military confidentiality requirements.

• Power Grid Telemetry: Extensively deployed in power plants, substations, and distribution rooms for critical dispatch calls and the backhaul transmission of power distribution network data.

• Subterranean Mining Operations: Solves the unique challenges of underground communication, ensuring clear voice calls and the reliable transmission of industrial monitoring signals to the surface.

• Traffic & Public Security: Ideal for connecting traffic police booths with central monitoring stations, simultaneously handling voice communication, video surveillance signals, and management data over a single fiber.

Why Choose Us

Selecting the right manufacturer for your telecommunications infrastructure is as critical as the equipment itself. We stand out as a trusted supplier by combining rigorous manufacturing standards with deep industry expertise, ensuring that every bulk order meets the exact specifications required by your engineering teams.

• Direct Manufacturer Advantage: By sourcing directly from our production facilities, enterprise buyers bypass intermediaries, securing premium equipment at highly competitive price points.

• Stringent Quality Control: Every single transceiver undergoes exhaustive burn-in testing, optical power verification, and signal fidelity checks before it is ever packed for shipment.

• Customization Capabilities: We understand that no two networks are identical; our engineering team can tailor port configurations, power options, and firmware to match your specific project blueprints.

• Dedicated Technical Support: Our relationship does not end at delivery. We provide comprehensive deployment guidance, configuration assistance, and rapid-response troubleshooting for your field engineers.

• Proven Industry Track Record: Our equipment currently powers the critical infrastructure of major power grids, transportation networks, and government facilities, proving its reliability in the real world.

FAQ

To assist procurement managers and network engineers in their evaluation process, we have compiled detailed answers to the most critical technical questions regarding the Telephone Optical Transceiver.

• Q1: How does the transceiver handle mixed signal inputs across legacy and modern networks?
  It features a highly advanced multiplexing architecture that supports anywhere from 1 to 32 telephone interfaces. It can seamlessly mix FXS, FXO, magnet, and hotline signals, and transmit them simultaneously alongside high-speed Ethernet and RS232 data without any cross-channel interference.

• Q2: Can this equipment be deployed in single-fiber infrastructure to save on cabling costs?
  Absolutely. While it supports standard dual-fiber transmission, it can be equipped with WDM (Wavelength Division Multiplexing) technology. This allows full bidirectional transmission of all voice and data services over a single core of optical fiber, effectively doubling your existing cable capacity.

• Q3: What failover mechanisms are built into the power supply architecture?
  The device is engineered with dual power inputs, supporting both AC 220V and DC -48V simultaneously. The internal power management system continuously monitors both inputs; if one fails, it automatically and instantaneously switches to the active backup without dropping the communication link.

• Q4: Is the Ethernet transmission physically isolated from other data streams?
  Yes, depending on the specific model selected, the device supports dual-channel Ethernet with strict physical isolation. Administrators can choose to bind the transmission for higher bandwidth (up to 3.84Mbps for E1 mapped Ethernet) or keep them independently isolated for enhanced network security.

• Q5: How intuitive is the remote management for large-scale network deployments?
  The transceiver is designed for effortless oversight. Beyond the comprehensive physical LED indicators on the front panel, it fully supports SNMP and Web-based management. This allows your central network operations center to remotely monitor optical power levels, port status, and system health across hundreds of deployed units simultaneously.
