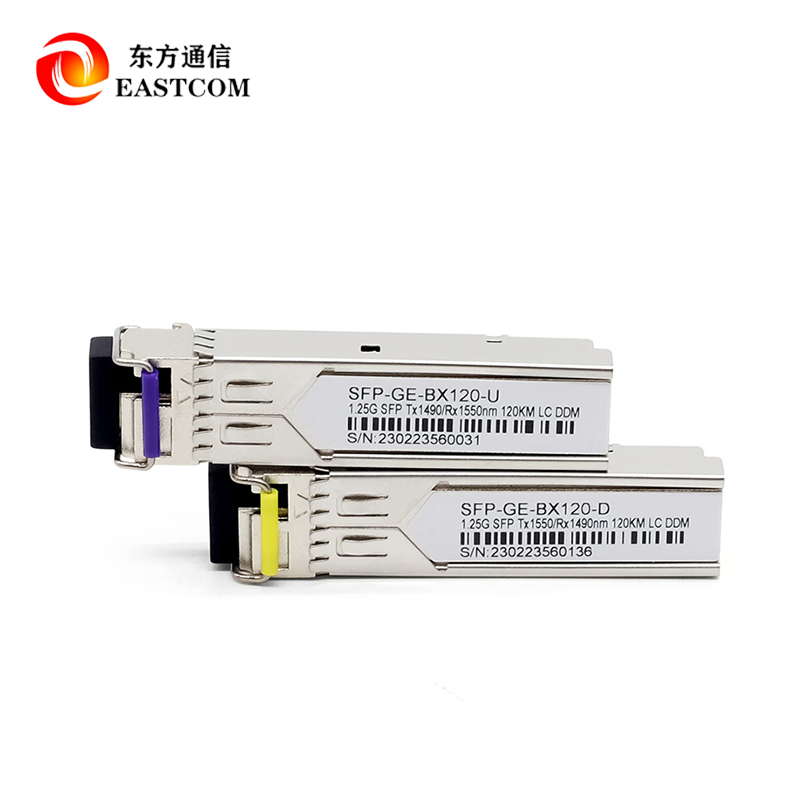

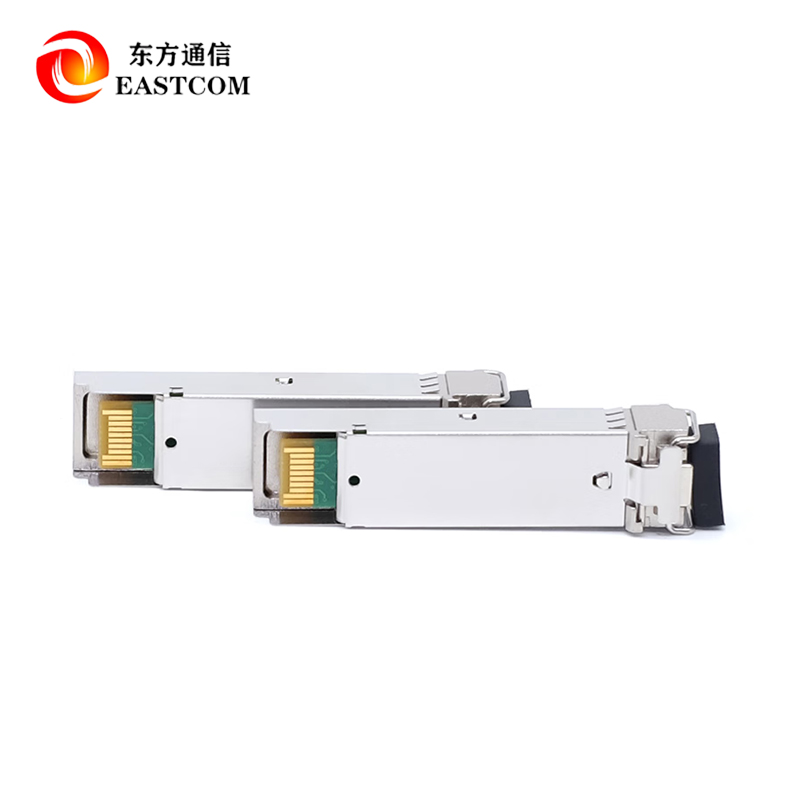

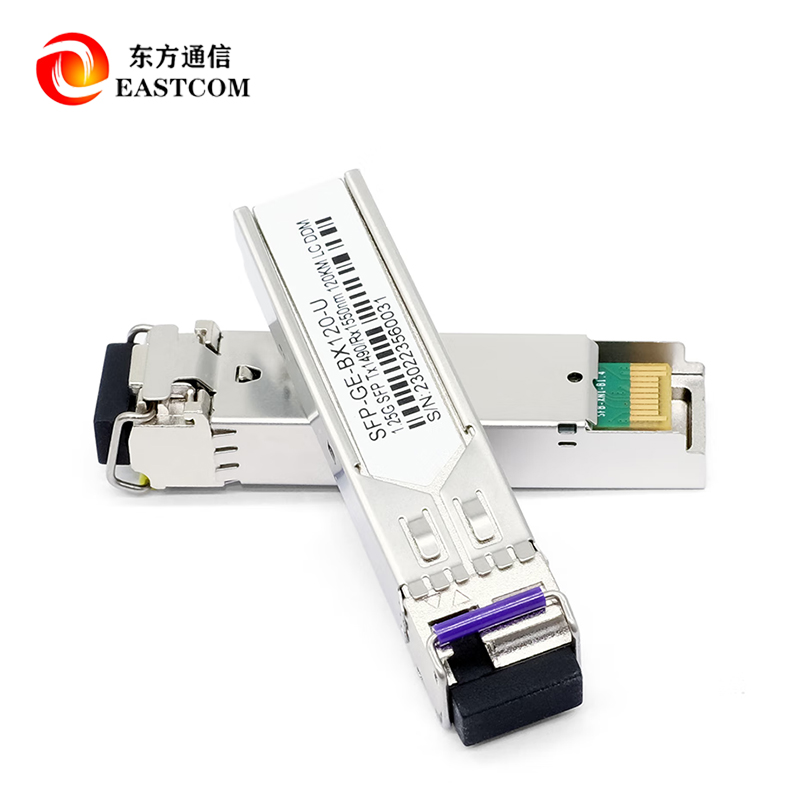

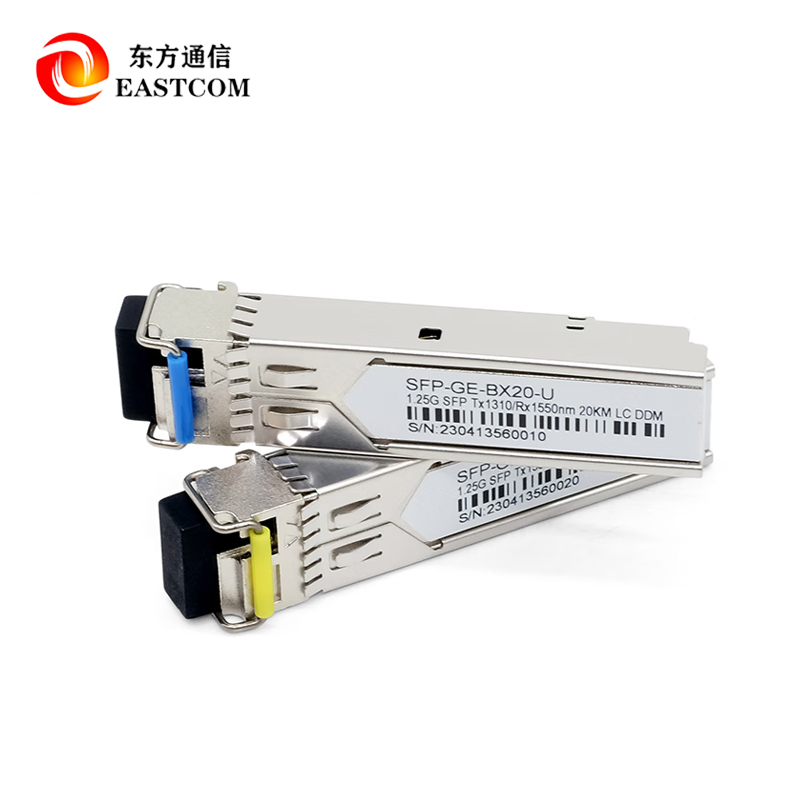

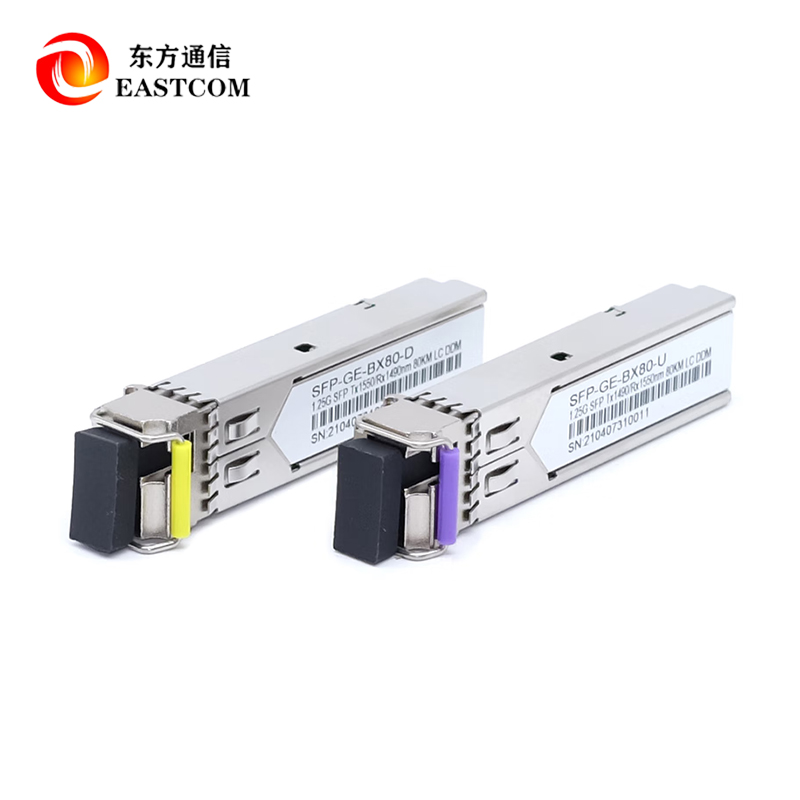

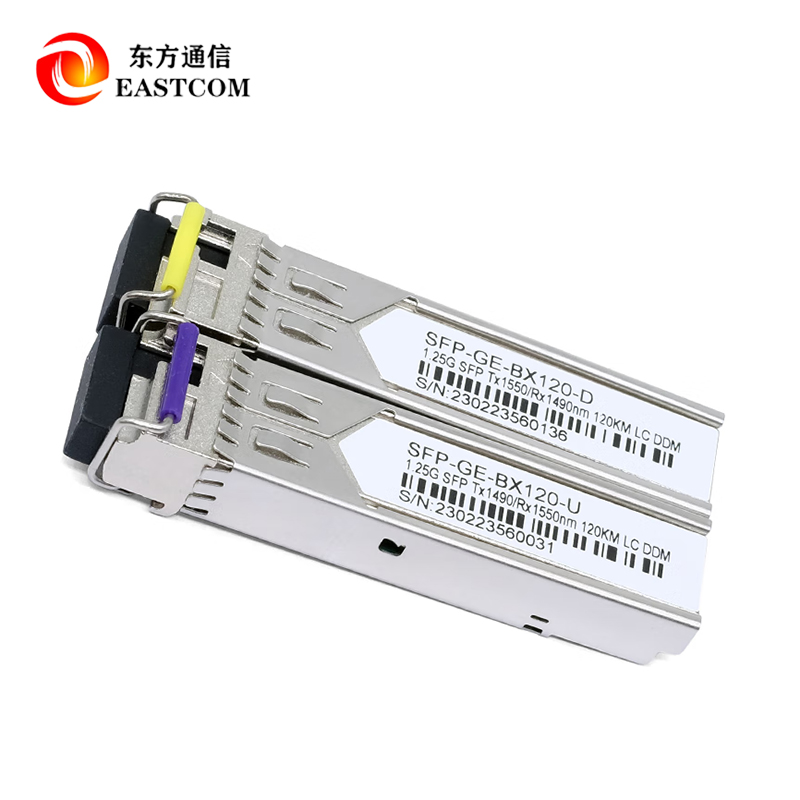

Optical Module

Product Advantage

• Rich Rates and Packages Available

Supports 100M/1000M/1000M/25G/40G/100G/400G and other rates, SFP/SFP+/QSFP+/QSFP28 and other packages, compatible with multi-brand devices (such as Cisco, Huawei, H3C, etc.).

• Multiple transmission distance coverage

Supports short-distance (such as 100m, 300m), medium-distance (such as 2km, 10km), and long-distance (such as 40km, 80km, 120km) transmission, which can meet the network deployment requirements of different scenarios.

• Multiple wavelength selection, support CWDM/DWDM

Supports dense wavelength division multiplexing technologies such as CWDM and DWDM, greatly improving the utilization rate of optical fiber bandwidth.

• High-quality laser devices and chips

Select high-reliability lasers (such as DFB, EML) and imported chips to ensure signal quality and long-life operation.

• Strong compatibility, driver-free plug-and-play

Support hot-swappable design, no driver required, plug-in and identify, seamlessly match with mainstream switches and routers.

• Low power consumption and stable performance

With low power consumption design (1W~3.5W), low heat generation, suitable for dense equipment deployment environments.

Technical Parameters

Product Uses

• Data center interconnection

Used for high-speed interconnection between servers, switches, storage, etc., supporting large traffic and low latency transmission.

• Operator metropolitan area network/access network

It meets the data transmission requirements from the core network to the user side and is the core equipment for building 5G, FTTH, IPRAN and other networks.

• WAN and backbone network transmission

It is suitable for long-distance, high-bandwidth data transmission, such as IDC interconnection, urban backbone links, inter-city transmission, etc.

• Video surveillance system

It provides stable and reliable optical link support for high-definition video transmission, suitable for security, transportation, factories and other fields.

• Industrial automation/smart grid

It realizes high-speed remote control and data transmission in power communication systems and industrial control networks.

FAQ

Q1: How to choose the right optical module model?

A1: It is mainly determined by the interface type (such as SFP/SFP+/QSFP), transmission rate (1G/10G/25G, etc.), transmission distance, wavelength (850nm/1310nm/1550nm) and compatible equipment brand.

Q2: How to match the optical module with the fiber jumper?

A2: When matching, you need to pay attention to the interface type (LC/SC, etc.), fiber type (single-mode/multi-mode), wavelength and distance; for example, 850nm is usually matched with multi-mode OM2/OM3 patch cords, and 1310/1550nm is matched with single-mode patch cords.

Q3: Are SFP and SFP+ modules compatible?

A3: SFP modules can be inserted into SFP+ interfaces, but can only run at gigabit speeds; SFP+ modules cannot be used in devices that only support SFP.

Q4: Can optical modules be hot-swapped? Is a driver required?

A4: Most optical modules support hot-swapping, and there is no need to install a driver. The device automatically recognizes them after insertion.

Q5: Are optical modules compatible with devices of different brands?

A5: Compatible modules support mainstream brands (Cisco, H3C, Juniper, Huawei, etc.); it is recommended to confirm the compatibility list before purchase, or choose OEM/compatible modules and provide the device model.
