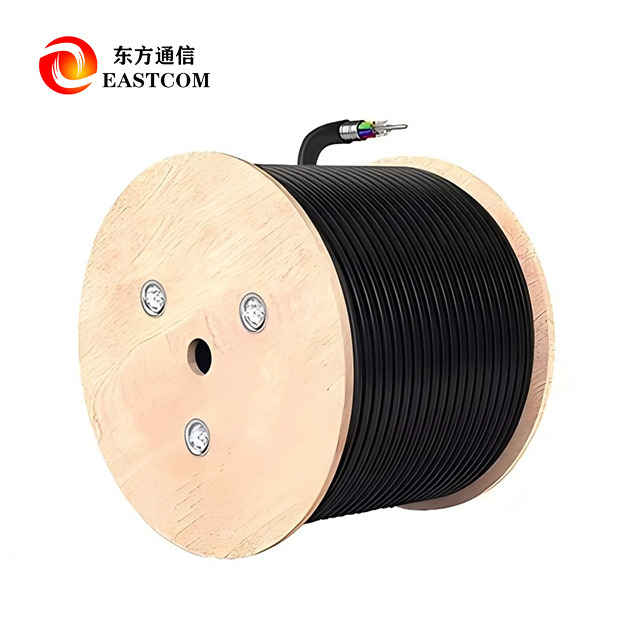

12 Core Armored Fiber Optic Cable

Product Advantage

• High Durability – Armored with corrugated steel tape for superior crush resistance and rodent protection.

• Moisture Protection – Special water-blocking gel ensures long-term reliability and prevents fiber degradation.

• Strong Mechanical Performance – Steel wire central strength member provides excellent tensile strength.

• UV and Flame Resistance – PE outer jacket designed for harsh outdoor conditions.

• Low Attenuation – Supports ≤0.35dB at 1310nm and ≤0.22dB at 1550nm, guaranteeing stable signal transmission.

• Wide Temperature Range – Operates in -40°C to +70°C, suitable for extreme climates.

Technical Parameters

• Fiber Count: 12 cores (6 fibers × 2 tubes)

• Cable Length: 2000 meters

• Insertion Loss: ≤0.35dB (@1310nm), ≤0.22dB (@1550nm)

• Bending Radius: Static 10D / Dynamic 20D

• Tensile Strength: 600/1500 N

• Crush Resistance: 300/1000 N/100mm

• Cable Diameter: 9.3 ± 0.2mm

• Operating Temperature: -40°C to +70°C

• Fiber Type: G.652D Single Mode Fiber

• Structure: GYTS armored loose tube with PE jacket

Product Uses

• Telecom Backbone Networks – Long-distance single-mode fiber connections for ISPs and telecom carriers.

• Power Grid Communication – SCADA and protection signaling for substations and transmission lines.

• Transportation Networks – Optical connectivity for highways, railways, and tunnels.

• Security and Surveillance – High-bandwidth video transmission for large-scale monitoring systems.

• Enterprise & Campus Networks – Outdoor fiber infrastructure for large institutions and industrial parks.

FAQ

Q1: What environments is this cable suitable for?
A: Ideal for aerial, duct, and underground installations in harsh outdoor conditions.

Q2: Does it support single-mode or multi-mode fiber?
A: It uses G.652D single-mode fiber cores for long-distance communication.

Q3: How is it protected against water and rodents?
A: The cable includes water-blocking gel and corrugated steel tape armoring for effective protection.

Q4: What is the typical transmission distance?
A: Supports long-distance optical transmission up to 2km and beyond, depending on network design.

Q5: Can the length and fiber count be customized?
A: Yes, custom configurations (core count, length, jacket color) are available upon request.
