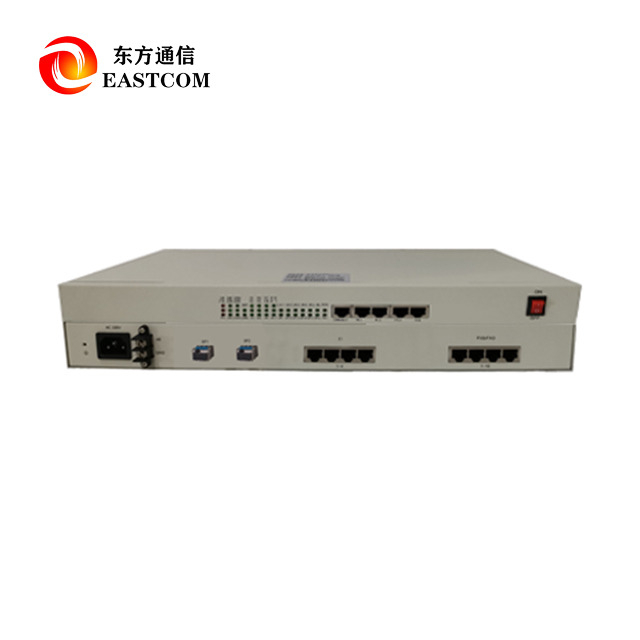

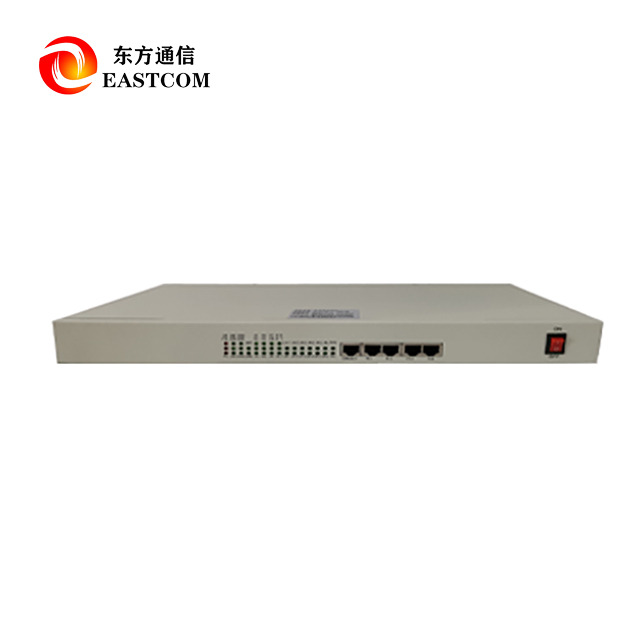

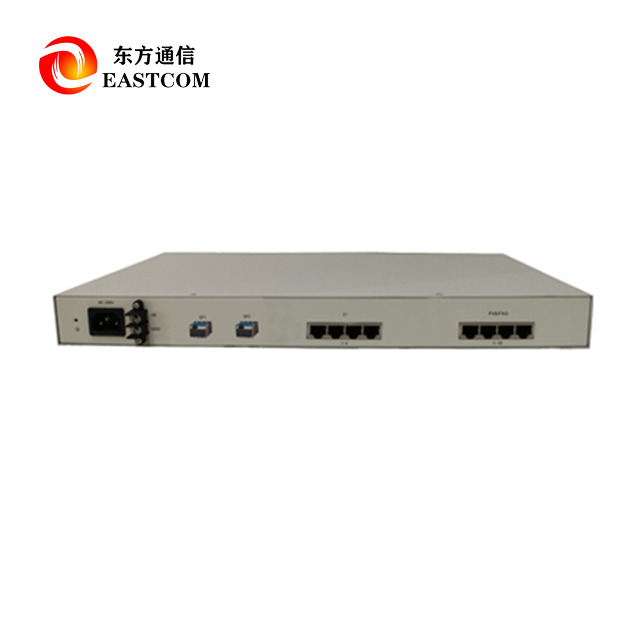

OTS-MSE2

Product Advantage

• Modular design: supports flexible combination of multiple service modules for easy expansion and maintenance.

• High integration: Multiple service signals are multiplexed and transmitted on the same platform, reducing the number of wiring and equipment.

• Dual-channel Ethernet, physical isolation: The device comes with 2-way high-speed, physically isolated Ethernet interfaces, taking into account high bandwidth and security isolation requirements.

• Flexible configuration and strong adaptability: supports flexible configuration of multiple services to meet the diverse needs of different users.

• Cost-effective: Provides excellent performance and stability, while being economically feasible and reducing overall investment costs.

• Compact 1U chassis: Saves space, easy to install and manage.

Technical Parameters

◆ E1 interface

• Interface code type:   HDB3 code

• Line rate:   2.048Mbp/s±50ppm

• Interface impedance:   75Ω / unbalanced, 120Ω / balanced

• Physical interface: BNC(75Ω)/RJ45(120Ω)

• Standard:   ITU-T G.703, G.704

• Jitter characteristics:   Meet G.704 and G.823

◆ Optical interface

• Optical line rate: 330 Mb/S

• Optical line coding: mBnB

• Connector: FC/SC

• Transmission distance: 2km/20Km/40Km/60Km/80Km optional

◆ FXS/FXO interface

• Provide 30FXS/FXO interfaces

• Impedance: 200Ω+680Ω||0.1μF (FXO)

• 200Ω+560Ω||0.1μF (FXS)

• Frequency characteristics: 300～ 3400Hz (-0.6～+3dB)

• Physical interface: RJ45

◆ Ethernet interface

• Provides 2-way 100M line speed, physically isolated Ethernet

• Supports IEEE 802.3/802.3u

• Supports 10/100M adaptive, full-duplex, half-duplex adaptive

• Supports cross-line and straight-through adaptive

• Physical interface: RJ45

◆ RS232 interface

• Physical interface: RJ45

• Rate: 300～19200B/S

◆ Voice coding and signaling method

• 16 time slots with channel signaling, in line with ITU-T G.732

• A-rate PCM coding, 64Kb/S per channel, in line with ITU-T G.711

◆ Power supply

• -48V DC (-36～-72V) or 220V AC (100～265V) optional

• Power consumption: less than 25W

◆ Mechanical structure

• 19-inch 1U

Product Uses

• Military and public security networks: Suitable for integrated data and voice transmission of troops and public security departments, supporting secure communication and remote control.

• Power and postal industries: Used for power dispatching communications and postal data transmission to ensure efficient and reliable network communications.

• Banking and financial systems: Provides secure and reliable integrated business links for bank branches and ATM networks.

• Enterprise private networks and government networks: Support the construction of integrated business networks for governments and large enterprises and institutions.

FAQ

Q1: What business interfaces does the device support?

A1: OTS-MSE2 supports multiple voice signal interfaces such as FXS, FXO, magnet, RS232 data interface, and 2 physically isolated Ethernet interfaces.

Q2: Does it support modular expansion?

A2: Yes, the device adopts modular design. Users can flexibly configure different business modules according to their needs, which is convenient for expansion and upgrading.

Q3: How does the device ensure the security isolation of Ethernet?

A3: OTS-MSE2 is equipped with 2-line speed, physically isolated Ethernet interfaces to ensure the security isolation of business data and prevent mutual interference and information leakage.

Q4: What scenarios is the device suitable for?

A4: It is suitable for industries that require comprehensive transmission of voice, data, Ethernet and other multiple services, including the military, public security, electricity, postal service, banking and government private networks.

Q5: Is it easy to install and manage?

A5: The device adopts a 1U compact chassis design, which saves cabinet space, is easy to install, and the modular structure is also convenient for later maintenance.
