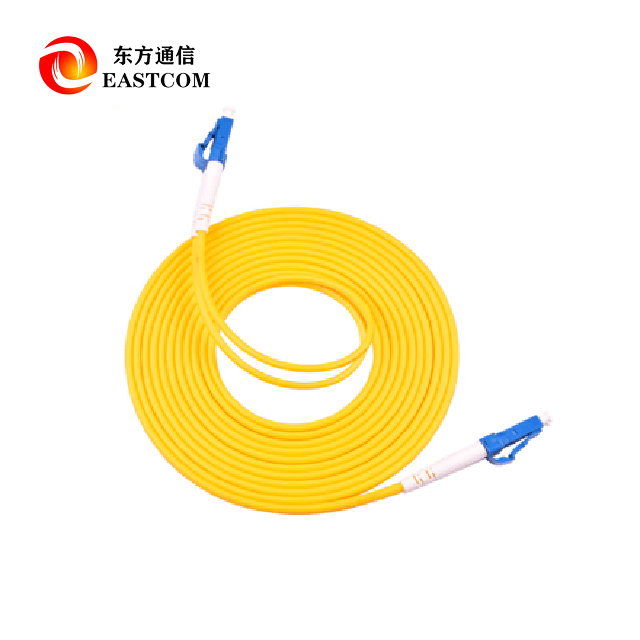

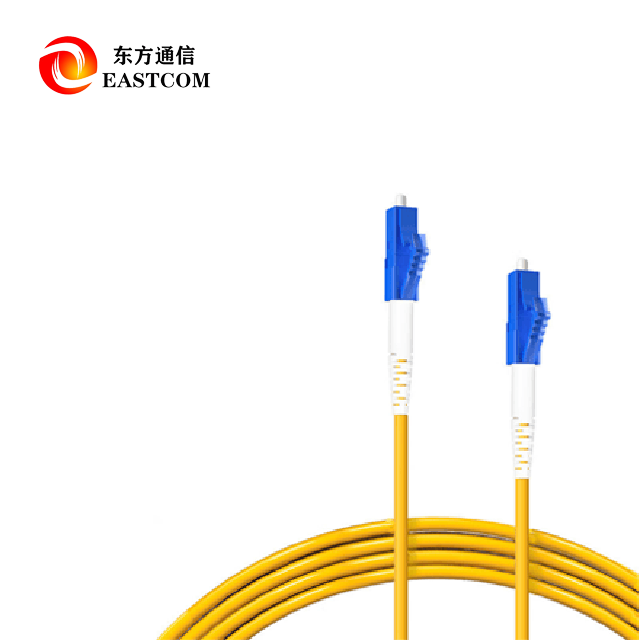

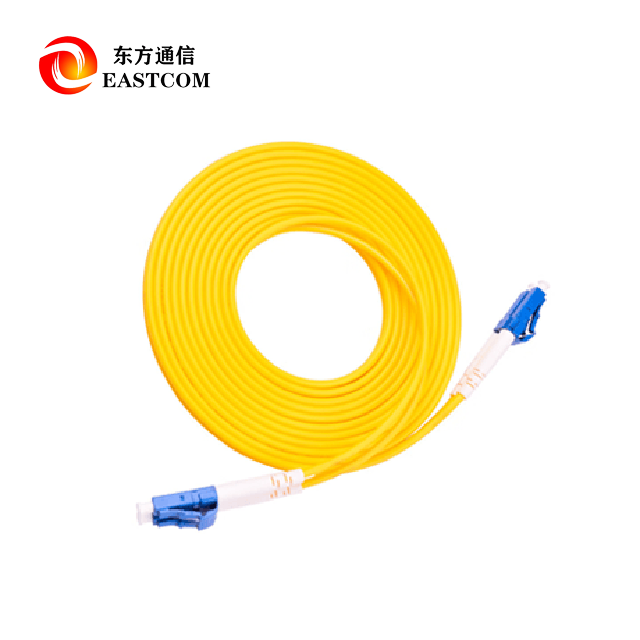

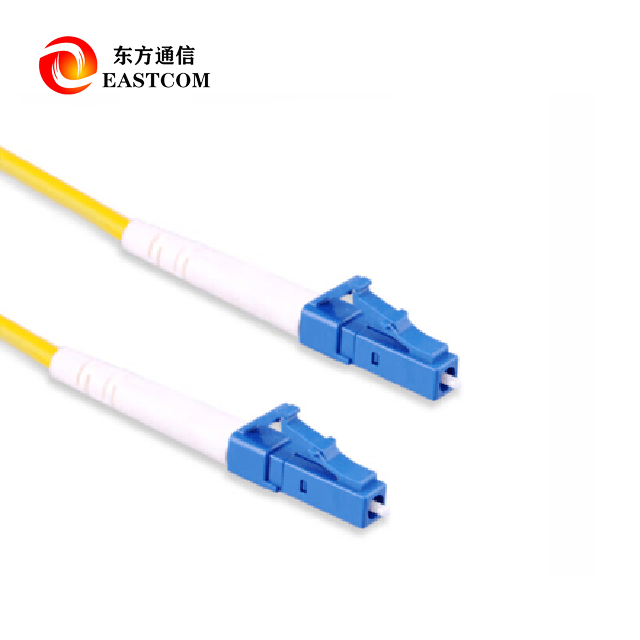

LC-LC Single-Mode Fiber Patch Cable

Product Advantage

• Telecom-Grade Quality

Ideal for data centers, telecom rooms, and interconnections between optical devices.

• High-Quality Ceramic Ferrules

Ensures stable interchangeability, high plug resistance, and consistent optical performance.

• Low Smoke Zero Halogen Jacket

Resistant to high temperature, flame-retardant, environmentally friendly, and strong anti-pull design.

• High-Performance Single-Mode Core

Low optical loss, easy splicing, and high-speed transmission stability.

• Precision Polishing Technology

Advanced grinding process for precise end-face geometry, preventing defects and scratches.

• Low Insertion Loss & High Return Loss

Plug-and-play design with insertion loss <0.3dB, ensuring minimal signal degradation.

Technical Parameters

• Connector Type: LC-LC

• Fiber Type: Single-mode (SM)

• Core Count: 1 core

• Cable Length: Customizable

• Plug Material: Class A Ceramic Ferrule

• Cable Jacket: High-quality PVC / LSZH (optional)

• Insertion Loss: ≤ 0.3 dB

• Return Loss: ≥ 50 dB

• Patch Cord Color: Yellow

• Operating Wavelength: 1310 nm ~ 1350 nm

• Tensile Strength: 45 kg

• Operating Temperature: -45°C ~ +85°C

Product Uses

• Data Centers & Server Rooms: High-speed interconnection of optical equipment.

• ODF Distribution Frames: For structured cabling and optical distribution.

• Optical Transceivers: Connects SFP/SFP+ modules to patch panels.

• FTTH/FTTB Deployments: Reliable termination for last-mile fiber access.

• Industrial Networks: Harsh environment fiber communication systems.

FAQ

Q1: What is the typical insertion loss of this LC-LC patch cord?
A: Less than 0.3 dB, ensuring excellent signal transmission.

Q2: Is this patch cord compatible with all LC interfaces?
A: Yes, it uses standard LC connectors with ceramic ferrules.

Q3: Can I customize the length of the cable?
A: Yes, lengths from 0.5m to 100m can be customized.

Q4: Does it support outdoor installation?
A: This model is mainly for indoor use, but outdoor LSZH versions can be provided upon request.

Q5: What jacket materials are available?
A: PVC and LSZH (Low Smoke Zero Halogen) for fire safety and environmental compliance.
