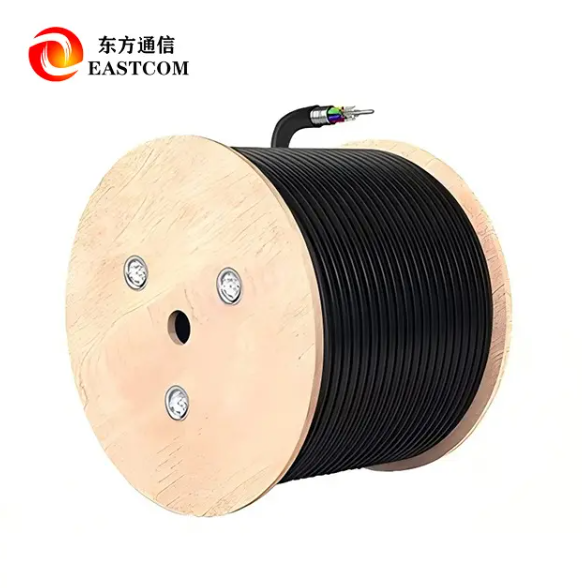

The 12 Core Armored GYTS Fiber Optic Cable is a high-reliability outdoor optical transmission medium, specifically engineered for long-distance data transmission in harsh outdoor environments. This cable features a loose tube layer-stranded structure with corrugated steel tape armoring, paired with high-quality G.652D single-mode fiber, delivering exceptional mechanical strength, waterproof performance, and rodent resistance. Designed for aerial, duct, and underground direct burial deployments, this outdoor armored single mode fiber cable is the ideal choice for telecom carriers, power grid operators, transportation infrastructure providers, and system integrators building robust, long-lasting outdoor fiber networks.
The corrugated steel tape armoring provides exceptional crush resistance and rodent protection, while the steel wire central strength member delivers outstanding tensile strength. This robust structure protects the fiber core from mechanical damage during installation and long-term operation, drastically reducing cable failure risks in outdoor and underground deployments.
Built with industry-standard G.652D single-mode fiber, it delivers ultra-low insertion loss (≤0.35dB at 1310nm, ≤0.22dB at 1550nm), ensuring stable signal transmission over long distances with minimal signal degradation. This makes it ideal for telecom backbone networks and long-haul infrastructure deployments.
Filled with special water-blocking gel in the loose tubes and cable core, it provides comprehensive moisture prevention to avoid fiber degradation caused by water ingress. The UV-resistant PE outer jacket delivers excellent flame retardancy and weather resistance, withstanding prolonged exposure to harsh outdoor conditions.
With an operating temperature range of -40℃ to +70℃, this cable maintains stable performance in extreme cold, high heat, and high humidity environments, making it suitable for deployment across diverse climate zones and harsh outdoor scenarios.
Parameter | Specification Details |
Fiber Count | 12 cores (6 fibers × 2 loose tubes) |
Fiber Type | G.652D Single Mode Fiber |
Cable Structure | GYTS loose tube, corrugated steel tape armoring, PE outer jacket |
Insertion Loss | ≤0.35dB @1310nm; ≤0.22dB @1550nm |
Bending Radius | Static 10D / Dynamic 20D |
Tensile Strength | 600N (installation) / 1500N (operation) |
Crush Resistance | 300N/100mm (installation) / 1000N/100mm (operation) |
Cable Diameter | 9.3 ± 0.2mm |
Operating Temperature | -40℃ ~ +70℃ |
Standard Length | 2000 meters (customizable) |
This telecom backbone armored fiber cable is widely deployed across core infrastructure scenarios: telecom backbone and access networks for long-distance single-mode fiber connections for ISPs and carriers; power grid communication systems for SCADA and protection signaling in substations and transmission lines; transportation infrastructure networks for optical connectivity in highways, railways, and tunnel projects; large-scale security and surveillance systems for high-bandwidth video transmission over long distances; and enterprise & campus outdoor fiber infrastructure for large industrial parks and institutional campuses.
We offer comprehensive customization services to meet diverse project requirements, including configurable fiber core count, cable length, outer jacket color, and jacket material (flame-retardant, low-smoke zero-halogen options). We also support custom armoring structures and fiber type adjustments to suit specific installation environments and industry standards, along with OEM branding services to align with your business identity. All custom cables comply with international and industry standards, ensuring full compatibility with standard optical transmission equipment.
It is ideal for aerial, duct, and underground direct burial installations in harsh outdoor environments, with robust protection against mechanical damage, rodent bites, and moisture ingress.
This cable uses industry-standard G.652D single-mode fiber cores, optimized for long-distance, low-attenuation optical communication in backbone and access network deployments.
Yes, we offer full customization of fiber core count, cable length, jacket specifications, and other parameters to match your project-specific requirements.
EASTCOM is a trusted provider of optical fiber infrastructure solutions, with decades of experience delivering high-quality fiber optic cables for telecom, power, transportation, and enterprise users worldwide. Our GYTS armored outdoor fiber optic cable is manufactured in strict accordance with international standards, using premium raw materials and undergoing comprehensive performance testing before delivery to ensure long-term reliability in harsh outdoor environments. We provide end-to-end technical support, from pre-sales material selection to after-sales installation guidance, along with flexible customization and bulk supply capabilities to meet the needs of large-scale infrastructure projects. With a global supply chain and strict quality control system, we deliver consistent, high-performance fiber optic products to our business partners across the globe.
