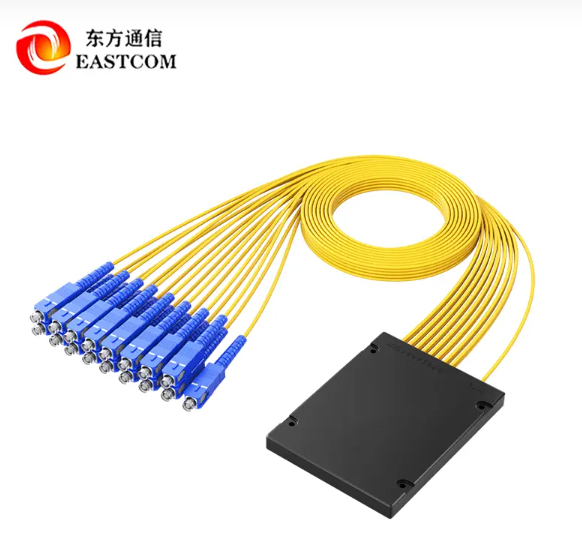

Our FC/SC PLC telecom-grade optical splitter is a high-reliability passive optical component based on advanced planar waveguide technology (PLC), purpose-built for precise optical signal distribution in modern fiber access networks. Featuring a built-in premium PLC chip, this pigtail box PLC splitter delivers consistent optical power allocation and uniform signal output, paired with industry-standard FC/SC interfaces for seamless compatibility with diverse fiber connection environments. Its compact box-type structure is optimized for installation in fiber distribution boxes, ODF frames, and distribution cabinets, making it the ideal choice for enterprise-level network deployment, telecom access projects, and system integration solutions.
Adopting high-quality planar waveguide PLC chip, the splitter ensures uniform optical power distribution across all channels, eliminating signal imbalance and maintaining stable long-term operation, which cuts network maintenance costs for business clients.
High-precision manufacturing minimizes insertion loss, with strict control of return loss and dispersion uniformity, fully complying with telecom-grade standards to preserve signal integrity in high-traffic network environments.
Equipped with FC/UPC, FC/APC, SC/UPC, SC/APC interfaces, the splitter features a secure locking design for firm connection, full compatibility with existing fiber infrastructure, and adaptability to diverse telecom and enterprise network access requirements.
The integrated box design enables quick installation and maintenance in complex wiring scenarios, significantly improving engineering efficiency and shortening project delivery cycles for system integrators and contractors.
Passed strict telecom-grade reliability tests, the splitter offers excellent shock, moisture, and wide temperature tolerance (-40℃ ~ +85℃), ensuring stable performance in harsh indoor and cabinet operating environments.
Parameter | Standard Specification |
Interface Type | FC/UPC, FC/APC, SC/UPC, SC/APC |
Fiber Type | G.657A1 (Customizable G.652D) |
Operating Wavelength | 1260 - 1650 nm |
Max Insertion Loss (1×4) | ≤7.4 dB |
Min Return Loss | ≥55 dB |
Dispersion Uniformity | ≤1.0 dB |
Standard Pigtail Length | 1m (Customizable) |
Operating Temperature | -40℃ ~ +85℃ |
Standard Splitting Ratios | 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 (Customizable) |
Product Model | Splitting Ratio | Interface Type | Typical Insertion Loss |
1×4 | 1 Input, 4 Outputs | FC/UPC | ≤ 7.4dB |
1×8 | 1 Input, 8 Outputs | FC/UPC | ≤ 10.5dB |
1×16 | 1 Input, 16 Outputs | FC/UPC | ≤ 13.7dB |
1×32 | 1 Input, 32 Outputs | FC/UPC | ≤ 16.9dB |
1×4 | 1 Input, 4 Outputs | SC/UPC | ≤ 7.4dB |
1×8 | 1 Input, 8 Outputs | SC/UPC | ≤ 10.8dB |
1×16 | 1 Input, 16 Outputs | SC/UPC | ≤ 13.7dB |
1×32 | 1 Input, 32 Outputs | SC/UPC | ≤ 16.9dB |
This telecom-grade fiber optic splitter is widely deployed in FTTH fiber-to-the-home access systems for last-mile coverage, EPON/GPON PON passive optical network architecture for upstream and downstream signal distribution, data center and central office fiber management, campus and enterprise LAN building-to-building fiber deployment, as well as security monitoring and intelligent transportation signal distribution networks.
We offer comprehensive customization to meet the diverse needs of enterprise and project-based clients, including adjustable splitting ratios from 1×2 to 1×64, flexible pigtail lengths, alternative fiber types, and additional interface options such as LC/APC. We also provide full OEM services, including brand labeling, customized packaging, and project-specific parameter tuning, to align with your business and project requirements.
We offer standard splitting ratios including 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64, with fully customized specifications available for large-scale project requirements.
Yes. The standard FC/SC interface design ensures full compatibility with mainstream fiber distribution boxes, ODF frames, and fiber connection systems, with no additional adaptation needed for existing infrastructure.
This standard model is designed for indoor cabinet and fiber distribution box environments. For outdoor deployment, we recommend our IP65+ protected splitter models, which can be customized to meet outdoor application needs.
As a leading professional manufacturer of telecom-grade optical components, EASTCOM delivers high-reliability fiber optic splitter solutions for enterprise clients, telecom operators, and system integrators worldwide. All products undergo strict telecom-grade reliability testing and full-process quality control, ensuring compliance with international industry standards. We offer flexible production capacity for both small-batch customization and large-scale bulk orders, paired with dedicated technical support and after-sales service, to help you reduce project costs, shorten delivery cycles, and build stable, high-performance fiber optic networks.
