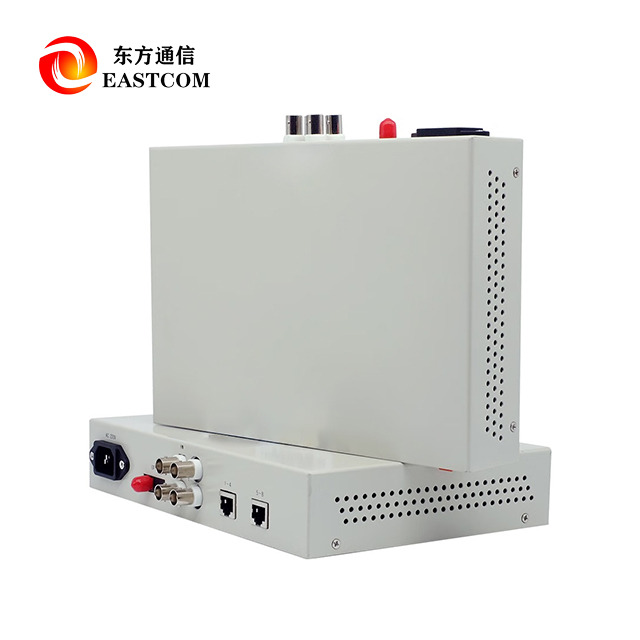

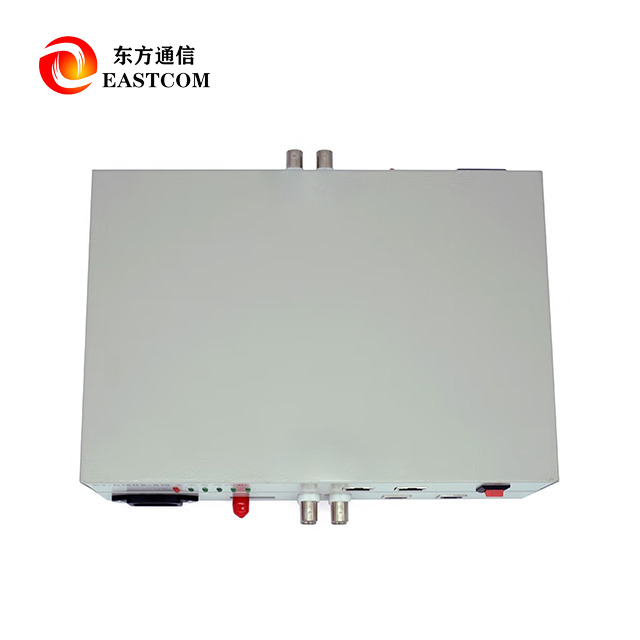

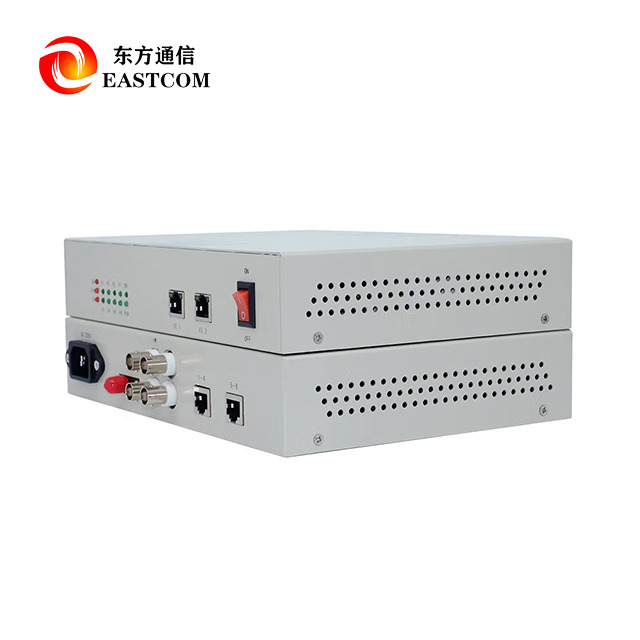

4GE Fiber Optic Transceiver

Product Advantage

• Multi-Port Gigabit Design – 4 adaptive Ethernet ports for simultaneous multi-device access.

• High-Performance Optical Transmission – Stable photoelectric conversion supporting IEEE 802.3 series standards for seamless data flow.

• Long-Distance Communication – Transmit data up to 120 km through optical fiber for extended network reach.

• Plug-and-Play – No configuration required; automatic speed negotiation, supports full/half-duplex mode.

• Industrial-Grade Reliability – Robust metal housing, wide-temperature tolerance, strong anti-interference performance for critical environments.

• Flexible Customization – OEM services available; supports different wavelengths, connector types, and isolation configurations.

Technical Parameters

Optical Interface

• Wavelength Options: 850nm / 1270nm / 1310nm / 1330nm / 1490nm / 1550nm

• Connector Types: FC / SC / LC (customizable)

• Transmission Distance: 0–120 km (depends on optical module)

• Optical Module Rate: 1.25 Gbps (SFP)

Ethernet Interface

• Ports: 4 × 10/100/1000 Mbps adaptive electrical ports

• Standards: IEEE 802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T), 802.3z (1000Base-X), 802.1q (VLAN)

• Auto-Negotiation: Full/Half duplex supported

• AUTO-MDIX: Automatic crossover/straight-through detection

• Flow Control: IEEE 802.3x (full-duplex), Back-Pressure (half-duplex)

• Frame Size Support: 1536 Bytes, 1552 Bytes, 2K Bytes, 9K Bytes (Jumbo Frame)

• Physical Isolation: Optional (2/4/8-way isolation for high-security applications)

• Connector: RJ45

Power and Form Factor

• Power Supply: AC input (desktop type)

• Housing: Industrial-grade metal enclosure

• Operating Temperature: Wide range for harsh environments

Product Uses

• Data Centers & Enterprise Networks – High-density fiber access for backbone interconnection.

• Security Surveillance – Transmits high-definition IP camera streams over long distances without signal degradation.

• Industrial Automation – Provides stable connectivity in factory automation and SCADA systems.

• Public Security & Government Networks – Supports mission-critical communication with high reliability.

• Telecom Operator Backhaul – Efficient and scalable for metro and access networks requiring high bandwidth.

FAQ

Q1: What is the maximum transmission distance of this transceiver?
A: Up to 120 km, depending on the optical module and fiber type.

Q2: Does it support VLAN tagging and jumbo frames?
A: Yes, it supports IEEE 802.1q VLAN and jumbo frames up to 9K Bytes.

Q3: Can this product operate in harsh industrial environments?
A: Yes. It features industrial-grade metal housing, wide temperature range, and strong anti-interference design.

Q4: Does it require configuration before use?
A: No. It’s plug-and-play with automatic negotiation for speed and duplex modes.

Q5: Is OEM customization available?
A: Yes. Options include connector types (SC/LC/FC), wavelengths, transmission distance, and port isolation design.
