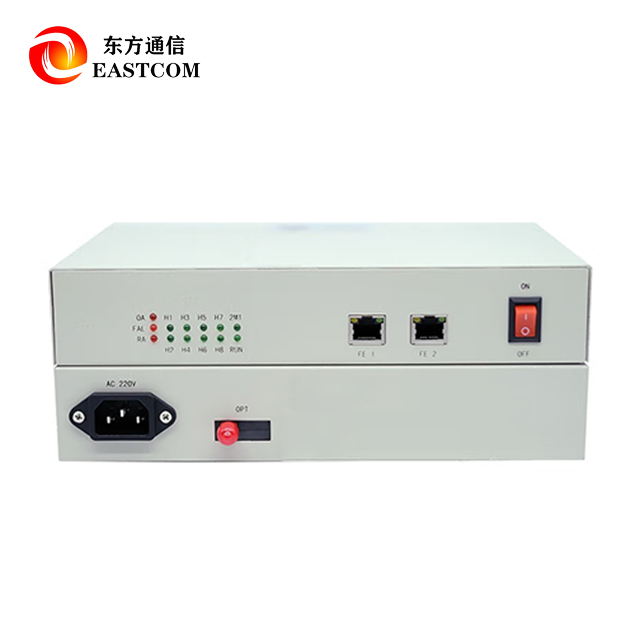

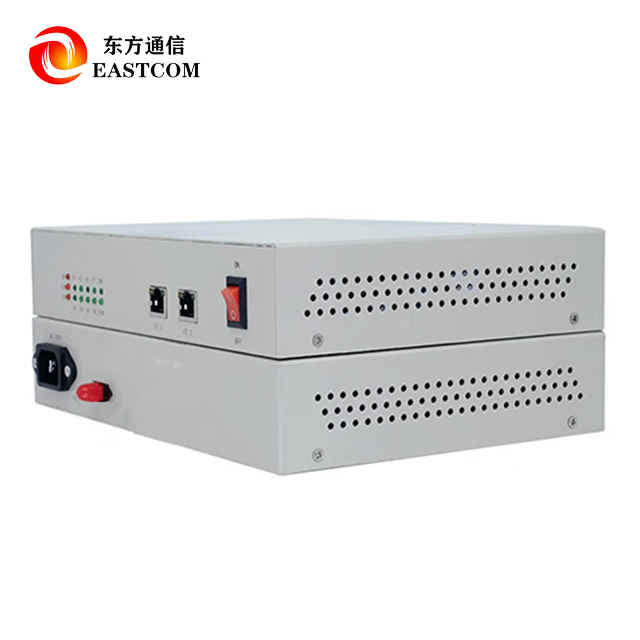

Fiber Optic Transceiver

Product Advantage

• Support 100M/Gigabit Ethernet

According to different needs, you can choose 10/100M or 10/100/1000M adaptive transceiver to meet a variety of bandwidth environments.

• Photoelectric conversion, high speed and stability

Realize lossless conversion between Ethernet signals and optical fiber signals, effectively extending the transmission distance to 2km~120km (depending on the configuration of the optical module).

• Plug and play, strong compatibility

No additional software configuration is required, it automatically adapts to the network and is compatible with various switches, routers, gateways and other devices.

• Strong anti-interference ability

Through optical fiber transmission, it effectively avoids electromagnetic interference, lightning interference, etc., and improves communication security.

• Multiple structures are available

Provide independent, rack-mounted, multi-port and other structures to meet the needs of different engineering wiring and computer room deployment.

• Industrial-grade design

Some models have wide temperature design and surge protection, suitable for complex power, industrial or outdoor environments.

Technical Parameters

◆ Optical interface

• Wavelength: 850/1270/1310/1330/1490/1550nm

• Connector: FC/SC/LC

• Transmission distance: 0~120km optional




◆ Ethernet interface

• Support 10M/100M, 10/100/1000M, full/half duplex adaptive

• Support AUTO-MDIX

• Standard: IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.1q

• Support full-duplex and half-duplex flow control

• Support 1536/1552/2K/9K Bytes frame

• Support 2/4/8-way Ethernet line speed, physical isolation transmission, providing fast and secure network transmission

• Physical interface: RJ45

Product Uses

• Security video surveillance system

Used for long-distance high-definition video signal transmission between front-end network cameras and back-end centers to ensure no delay or packet loss.

• Military and armed police communication network

Ensure the confidentiality and transmission stability of military data, suitable for high-speed interconnection between command posts and remote sites.

• Public security emergency and command and dispatch

Build a safe and efficient data communication network in the police system to connect front-line equipment with the command backend.

• Power dispatch and automation system

Realize data synchronization between power stations and central control rooms, and adapt to power automation terminals.

• Park/factory network extension

Extend the coverage of the LAN through optical fiber to solve the problem of high-speed interconnection between buildings and workshops.

FAQ

Q1: What is the maximum transmission distance of FC series transceivers?

A1: Depending on the optical module, it can support transmission distances of 2km, 20km, 40km, 60km, 80km or even 120km.

Q2: Does it support automatic negotiation rate?

A2: Supports automatic negotiation of 10/100M or 10/100/1000M rate switching without manual setting.

Q3: Does it support full-duplex/half-duplex?

A3: Supports full-duplex and half-duplex adaptation to meet the requirements of different network modes.

Q4: Does the product come with a power supply? Do I need to install a driver?

A4: The device supports independent power supply, AC adapter or rack power supply is optional, and no driver needs to be installed.

Q5: Do the two transceivers have to be exactly the same model?

A5: It is recommended to use the same model to ensure the best compatibility; some models can be mixed with standard SFP module devices, but attention should be paid to wavelength matching and rate consistency.
