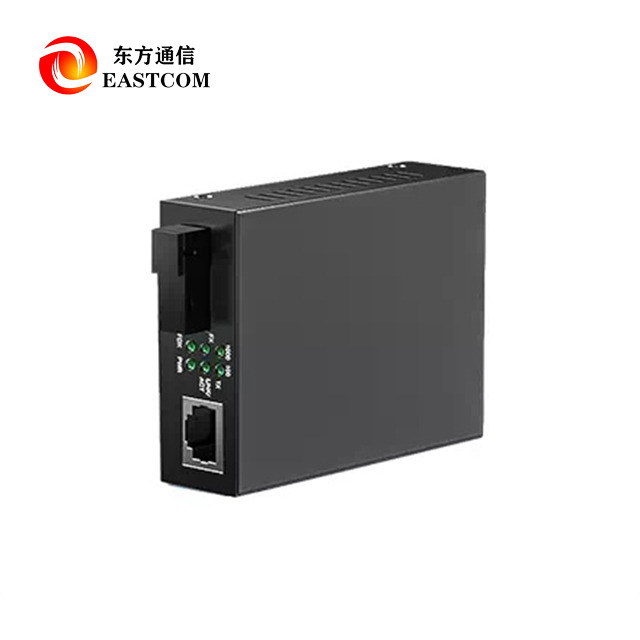

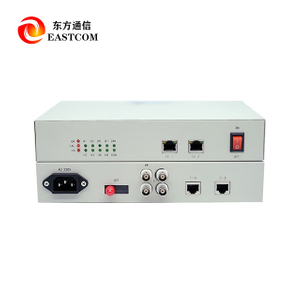

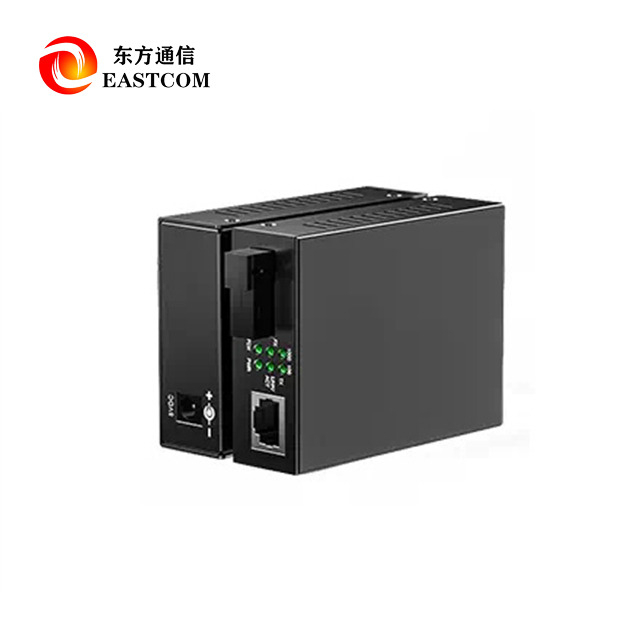

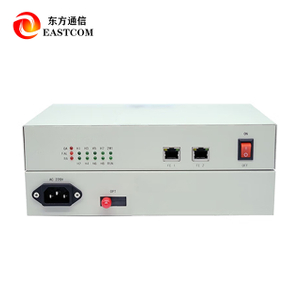

Fiber Optic Transceivers

Product Advantage

• High-Speed Data Transmission – Supports multi-rate Ethernet, ensuring seamless connectivity for diverse network needs.

• Wide Compatibility – Fully compliant with IEEE 802.3 standards, compatible with various network devices and switches.

• Long-Distance Capability – Transmission range up to 120 km, adaptable to both short-haul and long-haul scenarios.

• Industrial-Grade Stability – Strong anti-interference, wide temperature tolerance, and robust design for harsh environments.

• Physical Isolation for Security – Supports 2/4/8-way physical isolation for safe, interference-free data transmission.

• Plug-and-Play Design – No configuration required; automatic negotiation simplifies deployment.

Technical Parameters

◆ Optical Interface

• Wavelength: 850nm / 1270nm / 1310nm / 1330nm / 1490nm / 1550nm

• Connector Type: FC / SC / LC (optional)

• Transmission Distance: 0–120 km (depending on optical module)

◆ Ethernet Interface

• Speed: 10M/100M/10/100/1000M adaptive

• Duplex: Full/Half duplex auto-negotiation

• AUTO-MDIX: Supported

• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1q

• Frame Size: 1536 / 1552 / 2K / 9K Bytes (Jumbo Frames supported)

• Flow Control: IEEE 802.3x for full duplex, Back-Pressure for half duplex

• Physical Interface: RJ45

• Isolation: Supports 2/4/8-way physical isolation for enhanced security

Product Uses

• Telecommunications – Backbone transmission for metro and core networks.

• Data Centers – High-speed, high-density interconnection for servers and storage systems.

• Enterprise Networks – Reliable connectivity for LAN, WAN, and campus networks.

• Industrial Applications – Long-distance communication for SCADA, factory automation, and control systems.

• Security & Surveillance – Stable, long-distance transmission for IP cameras and monitoring systems.

FAQ

Q1: What is the maximum transmission distance?

A: Up to 120 km, depending on fiber type and optical module configuration.

Q2: Does the product support VLAN tagging and Jumbo Frames?

A: Yes, supports IEEE 802.1q VLAN and Jumbo Frames up to 9K Bytes.

Q3: Can it operate in harsh environments?

A: Yes, it is designed with industrial-grade stability, wide temperature tolerance, and strong anti-interference.

Q4: Is it compatible with different types of fibers?

A: Yes, supports both single-mode and multi-mode fibers, with FC/SC/LC connectors.

Q5: Does it require software configuration?

A: No, it’s plug-and-play, supporting automatic negotiation for speed and duplex mode.
