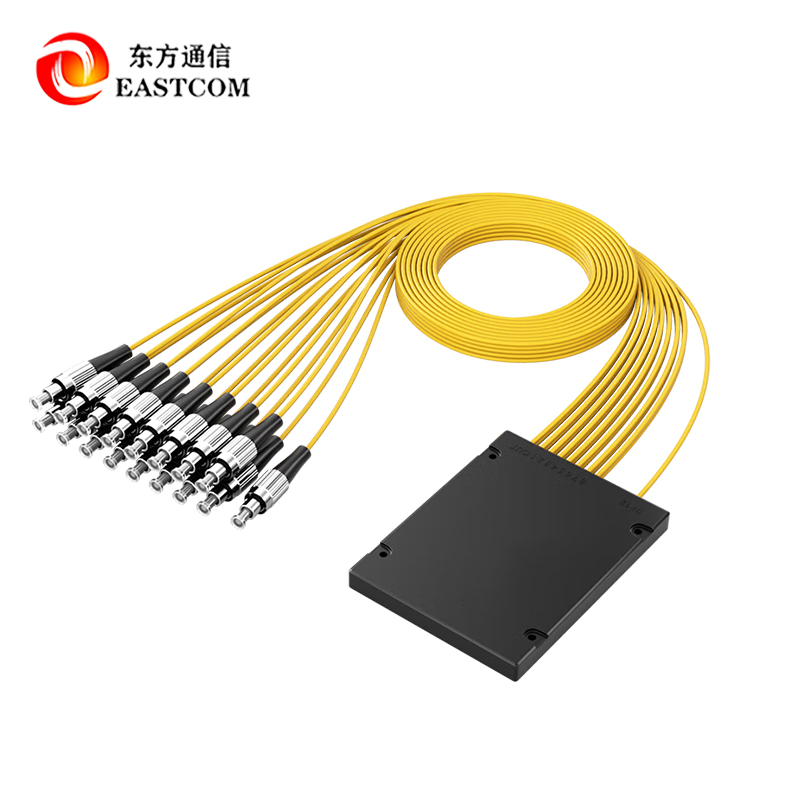

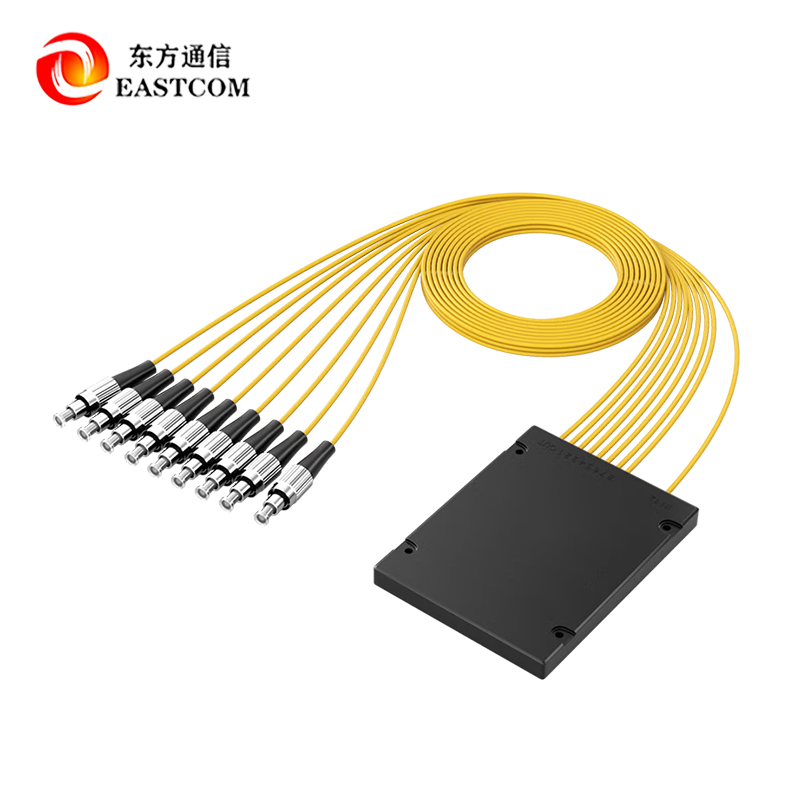

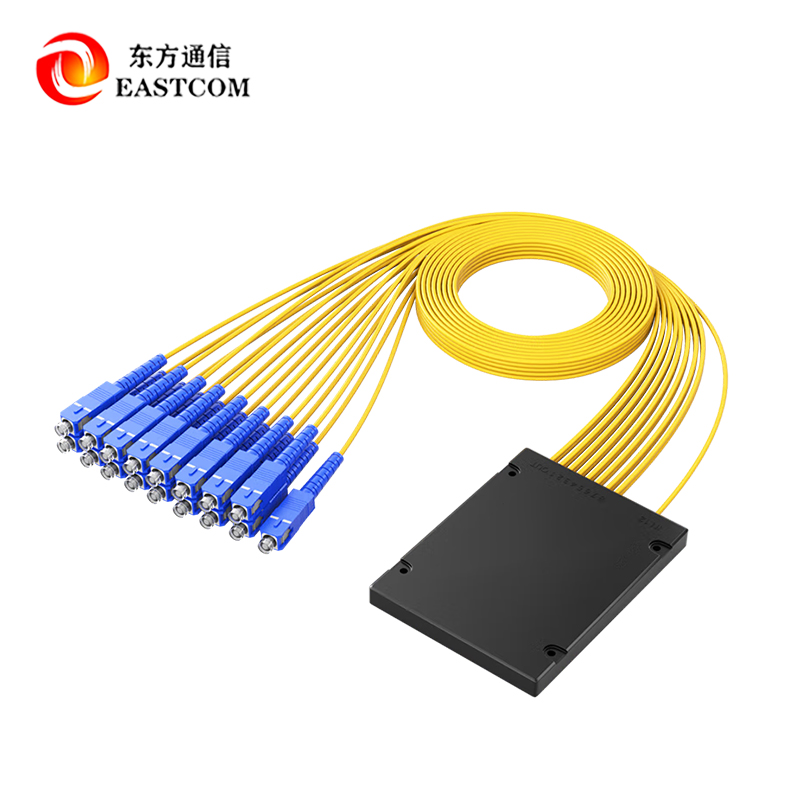

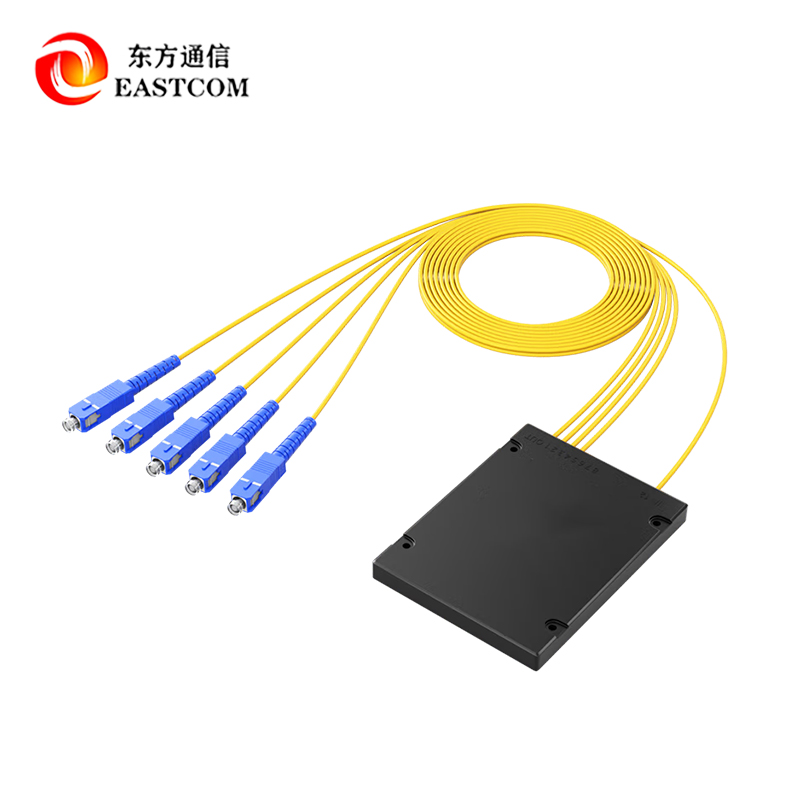

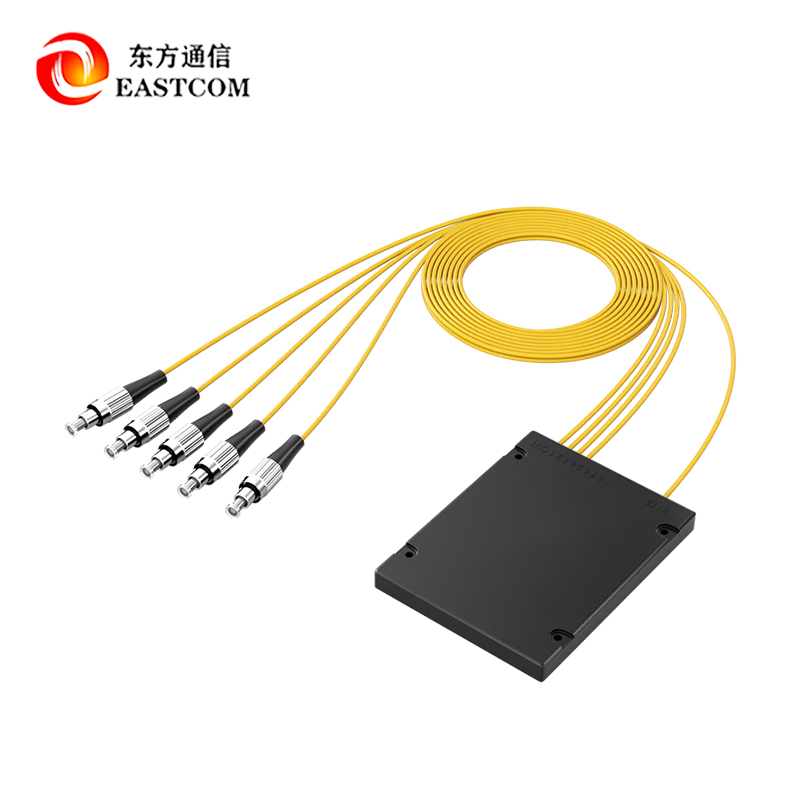

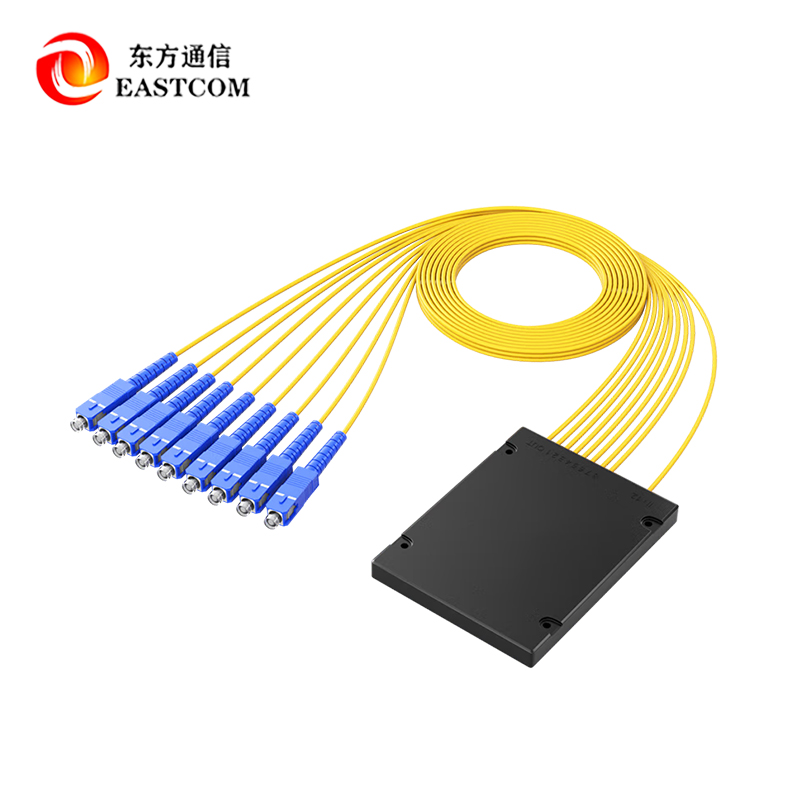

FC/SC Interface Telecom-grade Pigtail Box Optical Splitter

Product Advantage

• High-performance PLC chip: using high-quality planar waveguide chips to ensure uniform distribution of optical power and stable signal transmission.

• Low insertion loss: high-precision manufacturing process significantly reduces insertion loss, ensuring signal quality and system reliability.

• Interface standardization: equipped with standard FC /SCinterface, firm connection, strong compatibility, and meeting various access requirements.

• Box packaging structure: compact structure, easy to install and maintain quickly in the wiring environment, and improve engineering efficiency.

• High environmental adaptability: The product has passed the telecom-grade reliability test and has excellent earthquake resistance, moisture resistance and temperature resistance.

Technical Parameters

Product Uses

This FC /SC interface pigtail box optical splitter is widely used in the following scenarios:

• FTTH fiber-to-the-home system

Used to distribute optical signals from OLT to multiple end users to achieve last-mile access coverage.

• PON passive optical network system

Used for upstream and downstream signal distribution in EPON/GPON architecture to improve access efficiency and network resource utilization.

• LAN and campus network construction

Applicable to fiber deployment between buildings and floors to achieve multi-user fiber branch distribution.

• Data center and communication room

Used for fiber distribution and management, supporting high-density access and flexible deployment.

• Monitoring and intelligent transportation system

Can be deployed in fiber video monitoring or signal return network to achieve multi-channel signal distribution.

FAQ

Q1: What specifications of splitting ratio does this optical splitter support?

A: It generally supports splitting ratios such as 1x2, 1x4, 1x8, 1x16, 1x32, and 1x64, and can also provide customized specifications according to customer needs.

Q2: Why choose FC /SC interface instead of SC or LC interface?

A: FC /SC interface has high mechanical strength and rotation locking design, which is suitable for telecommunications-grade environments with high connection reliability requirements, especially for places with frequent vibration or movement.

Q3: Is the product suitable for outdoor environment?

A: This product is suitable for indoor fiber distribution boxes, ODF and other environments. If it needs to be used outdoors, it is recommended to select products with protection grade (such as IP65 or above) housing.

Q4: What is the insertion loss? How is the uniformity?

A: The insertion loss varies according to different splitting ratios. Generally, 1x8 products are less than 10.5dB, and 1x16 products are less than 13.5dB. The power uniformity between channels can be controlled within the range of ±0.5dB.

Q5: Do you provide customized pigtail lengths or other interfaces?

A: Supports customized pigtail length and optical cable type (G657A1, G652D, etc.), and other interface types such as SC/APC and LC are also available.

Optional Specifications
