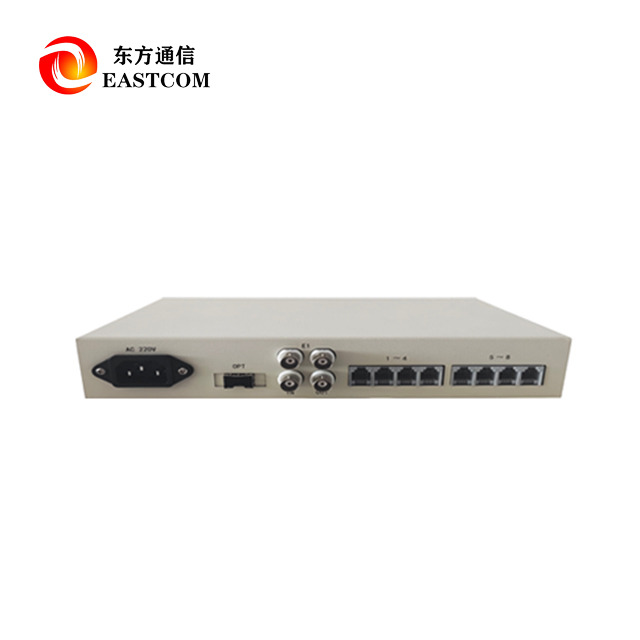

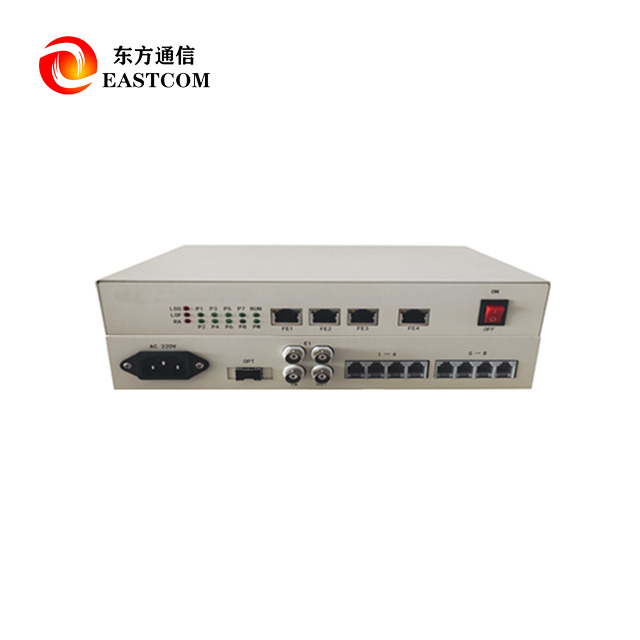

OTS-MSE4-MINI Multi-Service Optical Terminal

Product Advantage

• Modular, High Integration – 8 service slots support flexible mix of FXS/FXO, magnet, hotline, and E1 boards.

• Secure Multi-Port Ethernet – 4 × 100M line-rate ports, each physically isolated; total bandwidth 400Mb/s.

• Voice Service Flexibility – Supports FXS, FXO, magnet, hotline analog voice; caller ID supported.

• E1 Transport – Up to 2 E1 channels (HDB3, G.703/G.704 compliant) for legacy TDM backhaul.

• Robust Optical Uplink – mBnB coded optical line at 625Mb/s, long-reach optics to 120 km (module selectable).

• Auto Network Simplification – 10/100M auto-negotiation; full/half duplex; AUTOMDIX crossover detect.

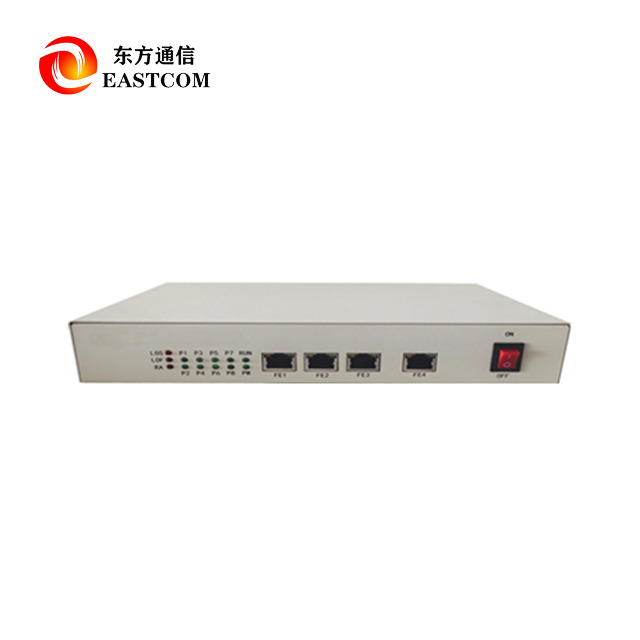

• Rich Status Indication – Front panel LEDs for link, alarm, and service status ease troubleshooting.

• Dual-Power Ready (Feature) – AC standard; DC option available* for field/battery/telecom power integration.
  *Confirm DC availability when ordering.

• Low Power Consumption – <10W typical.

Technical Parameters

Optical Interface

• Line Rate: 625 Mb/s

• Coding: mBnB

• Receiver Sensitivity: ≤ –27 dBm

• Connectors: FC / SC / LC (selectable)

• Optical Reach Options: 20 / 40 / 60 / 80 / 120 km

Ethernet Interface

• Ports: 4 × 100M, line-rate

• Isolation: Physical isolation per port

• Aggregate Bandwidth: 400Mb/s

• Standards: IEEE 802.3 / 802.3u

• Speed: 10/100M auto-adaptive

• Duplex: Full / half auto-negotiation

• Cable: AUTO-MDIX (crossover / straight-through auto detect)

• Connector: RJ45

E1 Interface

• Quantity: Up to 2 E1

• Coding: HDB3

• Line Rate: 2.048 Mb/s ±50 ppm

• Impedance: 75Ω unbalanced

• Connector: BNC (75Ω)

• Standards: ITU-T G.703 / G.704

• Jitter/Wander: Meets G.704 / G.823

FXS / FXO Interface

• Impedance:

• FXO: 200Ω + 680Ω || 0.1µF

• FXS: 200Ω + 560Ω || 0.1µF

• Frequency Response: 300–3400 Hz (-0.6 ~ +3 dB)

• Connector: RJ11

• Voice Coding & Signaling

• 16-timeslot CAS signaling, ITU-T G.732

• A-law PCM, 64 kb/s per channel, ITU-T G.711

• Caller ID: Supported

Power

• Standard Input: AC 220V (165–265V)

• Optional: DC variant available by request; consult for –48V models.

• Power Consumption: <10W

Mechanical

• Form Factor: Desktop

• Dimensions: 235 × 190 × 36 mm

Product Uses

• Military / Field Command Posts – Deploy secure, small multiservice nodes where space and power are limited.

• Public Security Surveillance Access – Aggregate voice lines and Ethernet camera/data feeds over fiber to control centers.

• Power Substation Edge Connectivity – Carry maintenance phones, protection channel E1, and IP monitoring on one link.

• Industrial / Utility Field Sites – Replace copper with longreach fiber; mix analog voice with Ethernet telemetry.

• Temporary or Mobile Deployments – Quick-setup station for emergency communication (voice + data) over fiber backhaul.

• Rural Telephony over Fiber – Extend POTS/FXS and small data services into remote villages or outposts.

FAQ

Q1: How many voice ports can the OTS-MSE4-MINI support?

A: The chassis provides 8 plug-in slots; actual FXS/FXO/magnet/hotline port counts depend on the mix of interface cards installed. Contact us with required channel quantity.

Q2: Are the 4 Ethernet ports really isolated?

A: Yes. Each 100M port is hardware-isolated to enhance traffic and security domain separation when sharing an optical uplink.

Q3: What is the maximum optical transmission distance?

A: Up to 120 km with the appropriate optical module and fiber budget selection.

Q4: Does the unit support both FXS and FXO on the same chassis?

A: Yes. Mixed interface cards (FXS/FXO/magnet/hotline) can be installed in the available slots.

Q5: Can I monitor device status remotely?

A: Basic local LEDs are standard. Remote management options vary by build; please inquire if SNMP/Web management is required.

Q6: Is DC power available?

A: Standard build is AC 220V. A DC –48V option or dual-power customization may be available—confirm at order time.

Q7: Can this unit interoperate with other vendor E1 or voice transport gear?

A: E1 complies with ITU-T G.703/G.704, and voice encoding follows G.711/G.732, enabling broad interoperability.
