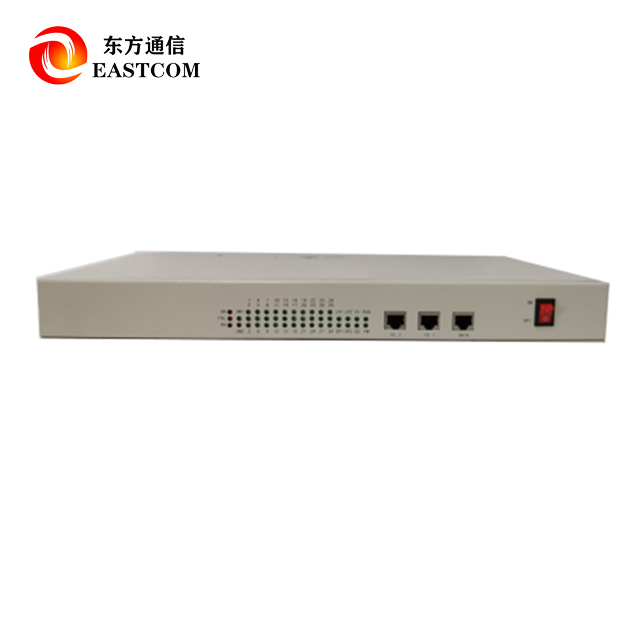

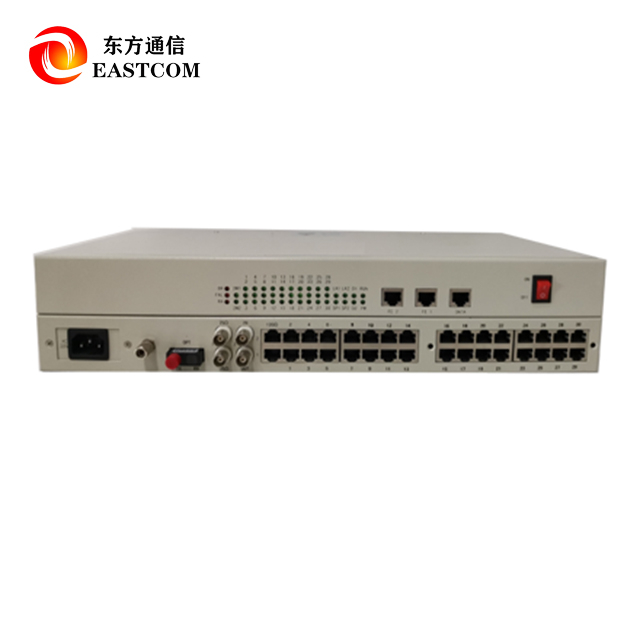

OTS-MSE2

Product Features

• Provide two physically completely isolated 100M Ethernet lines with a bandwidth of 200Mb/S

• Provide 2 E1 lines

• Support RS232 data interface

• Support FXO, FXS, magnet, hotline and other audio interfaces

• Maximum capacity: 2*E1 + 30*FXS/FXO + 2*100M Ethernet

• Support caller ID

• Complete status display for easy maintenance and management

Technical Parameters

◆ E1 interface

• Interface code type:   HDB3 code

• Line rate:   2.048Mbp/s±50ppm

• Interface impedance:   75Ω /unbalanced, 120Ω /balanced

• Physical interface: BNC(75Ω)/RJ45(120Ω)

• Standard:   ITU-T G.703, G.704

• Jitter characteristics:   Meet G.704 and G.823

◆ Optical interface

• Optical line rate: 330 Mb/S

• Optical line coding: mBnB

• Connector: FC/SC

• Transmission distance: 2km/20Km/40Km/60Km/80Km optional

◆ FXS/FXO interface

• Provide 30FXS/FXO interfaces

• Impedance: 200Ω+680Ω||0.1μF (FXO)

• 200Ω+560Ω||0.1μF (FXS)

• Frequency characteristics: 300～ 3400Hz (-0.6～+3dB)

• Physical interface: RJ45

◆ Ethernet interface

• Provide 2-way 100M line speed, physically isolated Ethernet

• Support IEEE 802.3/802.3u

• Support 10/100M adaptive, full-duplex, half-duplex adaptive

• Support cross-line and straight-through adaptive

• Physical interface: RJ45

◆ RS232 interface

• Physical interface: RJ45

• Rate: 300～19200B/S

◆ Voice coding and signaling method

• 16 time slots on-channel signaling, compliant with ITU-T G.732

• A-rate PCM coding, 64Kb/S per voice channel, compliant with ITU-T G.711

◆ Power supply

• -48V DC (-36～-72V) or 220V AC (100～265V) optional

• Power consumption of the whole machine: less than 25W

◆ Mechanical structure

• 19-inch 1U
