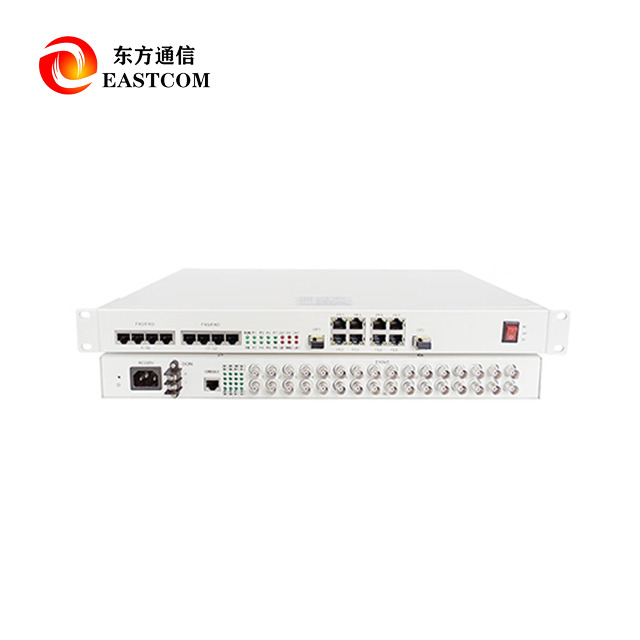

OTS-MSE8-16E1

Product Advantage

• High Integration & Stability – Large-scale integrated circuit design; long-term reliable operation in harsh environments.

• Dual Optical 1+1 Protection – Automatic switchover enhances link availability for mission-critical service.

• True Physical Isolation – All 8 Ethernet channels are physically isolated even when carried over the same fiber, improving network security boundaries.

• High Multi-Service Capacity – Up to 32 voice ports, 16 E1 passthrough channels, and 8 × 100M line-rate Ethernet (800Mb/s total).

• Rich Voice Interface Support – FXS/FXO, magnet, hotline; caller ID supported.

• Flexible Optical Options – Single/dual fiber builds; multiple wavelengths & launch powers; reaches to 120 km.

• Dual Power Input – -48V DC and AC 220V (both supported; dual redundant optional).

• AUTO-MDIX Ethernet – Auto crossover/straightthrough cable adaptation simplifies field wiring.

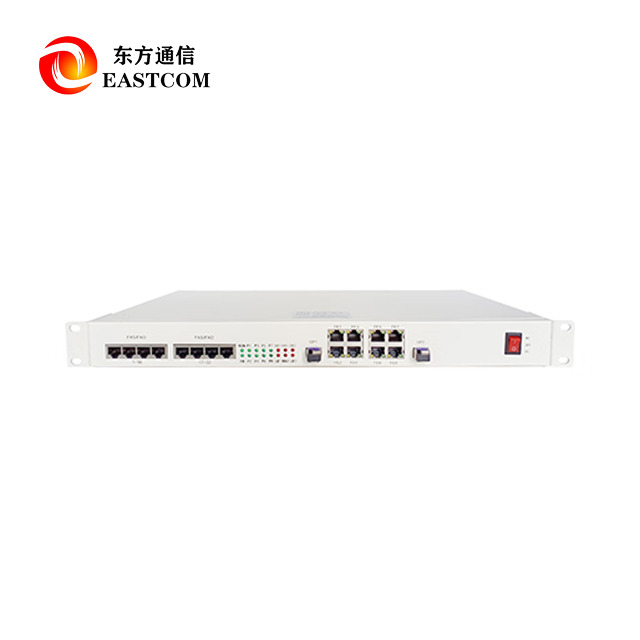

• FrontPanel Status LEDs – Rapid visual diagnostics for ports, alarms, and link state.

Technical Parameters

Optical Interface

• Ports: 2, 1+1 protected

• Coding: mBnB

• Receiver Sensitivity: ≤ –26 dBm

• Connector: LC (optional)

• Distances: 20 / 40 / 60 / 80 / 120 km selectable

• Fiber Mode: Single-fiber or dualfiber builds available

Ethernet Interface

• 8 × 100M wire-speed, physically isolated channels

• Aggregate bandwidth: 800 Mb/s

• Standards: IEEE 802.3 / 802.3u

• Speed: 10/100M auto-adaptive

• Duplex: Full / half auto-negotiation

• Cable: AUTO-MDIX (crossover / straightthrough auto detect)

• Connector: RJ45

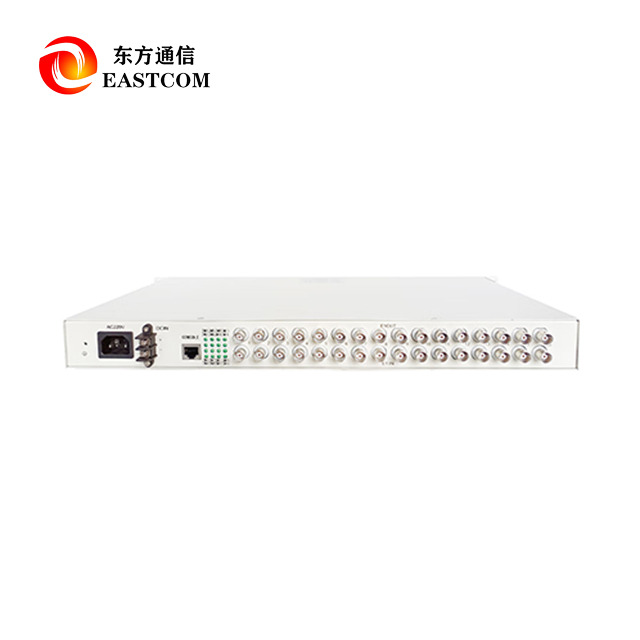

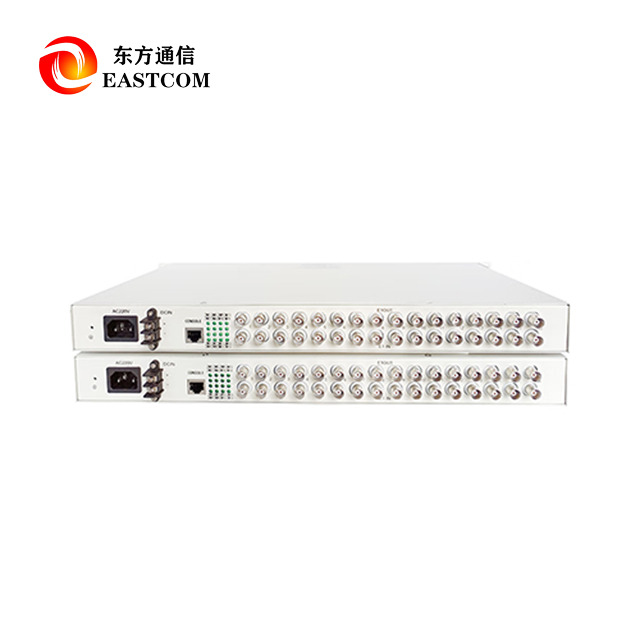

E1 Interface

• Quantity: 16 × E1 passthrough (over fiber)

• Coding: HDB3

• Line Rate: 2.048 Mb/s ±50 ppm

• Impedance: 75Ω unbalanced

• Connector: BNC

• Standards: ITU-T G.703 / G.704

• Jitter/Wander: Meets G.704 / G.823

FXS/FXO Voice Interface

• Quantity: Up to 32 FXS/FXO

• Impedance:

• FXO: 200Ω + 680Ω || 0.1μF

• FXS: 200Ω + 560Ω || 0.1μF

• Frequency Response: 300–3400 Hz (-0.6~+3 dB)

• Connector: RJ45

• Caller ID: Supported

Magnet Telephone Interface

• Quantity: Up to 32 magnet lines

• Impedance: 600Ω

• Frequency Response: 300–3400 Hz (-0.6~+3 dB)

• Ring: 25 Hz (20–30 Hz), 75V (60–90V)

• Connector: RJ45




Voice Coding & Signaling

• 16-time-slot CAS signaling, ITU-T G.732

• A-law PCM, 64 kb/s per channel, ITU-T G.711

Power

• -48V DC (-36 ~ -72V)

• AC 220V (165 ~ 265V)

• Dual power input supported

• Power Consumption: <30W

Mechanical

• Form Factor: 19" 1U rack-mount

Product Uses

• Military / Tactical Communication Nodes – Secure, multiisolated network transport with voice + E1 + data integration over long distance fiber.

• Public Security & Emergency Command – Aggregates surveillance data, dispatch voice, and legacy E1 for command centers.

• Power Grid & Substation Networks – Carry SCADA E1 channels, VoIP/FXS service, and Ethernet telemetry over protected fiber.

• Government / Administrative Private Networks – Multidepartment traffic isolation on shared infrastructure; high security requirements.

• Transportation, Rail & Metro Signaling – Reliable E1 signaling + IP data backhaul with fiber redundancy.

• Industrial / Energy Field Deployments – Replace copper in noisy or high-EMI environments; longhaul fiber with link protection.

FAQ

Q1: What is the maximum multi-service capacity of OTS-MSE8-16E1?
A: Up to 32 FXS/FXO (or magnet/hotline) + 16 E1 + 8 × 100M Ethernet channels.

Q2: Are the Ethernet channels really isolated?
A: Yes. All 8 Ethernet ports are physically isolated at the hardware level, even when multiplexed over the same fiber, helping enforce security domain separation.

Q3: How does the optical 1+1 protection work?
A: Two fiber ports operate in a protected pair; if the working fiber fails, traffic automatically switches to the standby fiber with minimal interruption.

Q4: What is the longest supported optical reach?
A: Up to 120 km (optical budget dependent—select appropriate optics when ordering).

Q5: Does the unit support caller ID and legacy telephone types?
A: Yes. It supports FXS, FXO, magnet, and hotline interfaces, with caller ID capability.

Q6: Can I mix AC and DC power?
A: Yes. The chassis supports dual input (e.g., AC + DC redundancy) depending on configuration.

Q7: Which standards govern the E1 interface?
A: The E1 ports comply with ITU-T G.703 / G.704, and jitter performance meets G.823 requirements.
