Choosing between single-mode and multimode optical transceivers is not simply a distance decision. The module, fiber plant, wavelength, connector path, host port, data rate, and optical budget must form one compatible link. Multimode is often practical inside buildings and equipment rooms; single-mode is usually the stronger choice for longer routes and uncertain future expansion. Yet either can fail when buyers match only the label on the module. This guide compares the two technologies from a project-engineering perspective and shows which facts to verify before purchase, installation, or migration.
Choose the complete channel—transceiver, fiber, connectors, patching, wavelength, and host—not one component in isolation.
Multimode commonly suits controlled short links; single-mode generally offers greater reach and a clearer long-term migration path.
Modules at both ends must match in speed, optical standard, wavelength plan, fiber type, and link direction.
A nominal distance rating is not an optical-budget calculation.
Existing cabling, pathway cost, downtime risk, and future topology often matter more than the module price.
Single-mode fiber guides light through a much smaller core than multimode fiber. The narrower path limits modal dispersion, which allows signals to remain distinguishable over longer distances. Multimode fiber permits many propagation paths. That characteristic can simplify short-reach optical systems, but the different paths arrive at slightly different times and constrain reach as speed increases.
This physical distinction affects the whole channel. A single-mode module is designed for single-mode fiber and a corresponding wavelength and receiver range. A multimode module is designed around multimode launch conditions and an appropriate multimode cable grade. The two ends of a duplex link normally use matching optical specifications. A cable that happens to fit the connector does not prove optical compatibility.
In practical SMF vs MMF planning, the phrases single-mode optical transceiver and multimode optical transceiver describe only one component of the decision. Fiber compatibility and a verified optical link budget remain essential.
It also helps to separate three product families that are often called “transceivers.” Pluggable optical modules install in switch or router cages. Ethernet fiber converters translate between copper and fiber interfaces. Service transport equipment can multiplex E1, Ethernet, voice, or other signals over a fiber path. Shandong Dongfang Communication Technology Co., Ltd. presents these device families separately in its optical transceivers category, so the application layer should be defined before fiber mode is selected.
Decision factor | Single-mode link | Multimode link |
|---|---|---|
Fiber core behavior | One principal propagation mode | Multiple propagation modes |
Typical role | Campus, metro, access, long building-to-building routes | Data rooms, buildings, short campus links |
Reach potential | Higher | Lower, increasingly constrained at higher speeds |
Common wavelength families | Often around 1310 or 1550 nm, depending on optic | Often around 850 nm, depending on optic |
Cabling strategy | Strong for new long-life outside-plant routes | Useful where compatible MMF already exists |
Main design risk | Receiver overload or underestimated loss on a poorly planned link | Modal bandwidth, cable grade, and excessive reach |
Migration question | Whether the selected fiber and connector plan support future optics | Whether installed OM grade supports the next speed and reach |
The table is directional, not a substitute for a data sheet. “Single-mode” does not identify a speed, reach, wavelength, connector, or protocol. “Multimode” does not guarantee that every OM grade will support the desired link. The exact optical interface must be confirmed at both ends.
Single-mode is usually favored where route length exceeds the comfortable range of the intended multimode standard, where the fiber leaves a building, or where expansion is likely. It is also valuable when a project has several uncertain variables: future data rates, additional patch panels, route changes, or a possible shift from point-to-point service to a larger access network.
Long reach is only part of the value. Installing cable through ducts, roads, industrial sites, or occupied buildings is costly and disruptive. Selecting a fiber plant with broader reach potential can reduce the probability that cabling must be replaced during a later electronics upgrade. The module may change, but a well-documented single-mode plant can remain useful across generations of equipment.
Single-mode also fits many carrier, utility, transportation, surveillance, and private-network routes. These applications may cross outdoor cabinets, distribution frames, splices, and several facilities. Each interface adds loss and uncertainty. A formal optical budget is therefore more useful than a simple map distance.
There are limits. A high-power long-reach transmitter connected across a very short, low-loss path may overload a sensitive receiver. The solution is not to assume that “more reach is safer”; it is to compare transmit range, receiver sensitivity, overload level, path loss, and engineering margin. Correct attenuation may be required in some designs.
Multimode remains practical for short, controlled channels, particularly where compatible multimode cabling is already installed and documented. Equipment-room, building, and short campus connections can benefit when the route length and cable grade fit the selected standard. A multimode upgrade can avoid unnecessary recabling if the existing plant passes inspection and supports the required speed.
The economic decision should include installed cost. A module-only comparison ignores cable availability, termination labor, pathway access, testing equipment, spares, and outage windows. If an operational facility already has suitable multimode trunks, replacing them with single-mode may add little immediate value. Conversely, installing new multimode solely because individual optics appear less expensive can be shortsighted when future reach is unknown.
Multimode selection must be precise. OM1, OM2, OM3, OM4, and OM5 are not interchangeable planning labels. Supported distance depends on the Ethernet or Fibre Channel optical standard and the cable grade. Patch cords should match the trunk type, and mixed grades should be treated as a channel-design issue rather than an administrative detail.
For short Ethernet extension outside a modular-switch context, a buyer may need a complete fiber optic transceiver product rather than a bare pluggable module. That distinction affects power, copper interfaces, installation, alarms, and maintenance responsibility.
First, confirm the host interface. Form factor alone is insufficient. An SFP-shaped device may support a different rate or protocol from the port configuration. Check the equipment model, port mode, supported coding, firmware limitations, and whether vendor-specific module recognition is enforced.
Second, match both endpoints. The transmitter wavelength at one end must be received correctly at the other. Duplex links normally pair like optical standards. Bidirectional single-fiber links require complementary transmit and receive wavelengths; two identical BiDi units usually do not form a working pair unless explicitly designed that way.
Third, match fiber type and grade. A single-mode optic should use the specified single-mode cable. A multimode optic needs the correct multimode grade for its rate and reach. Mode-conditioning components are special-case engineering tools, not a universal way to mix optics and cable.
Fourth, verify connectors and polarity. LC, SC, and FC describe connector families, not fiber mode or polish by themselves. UPC and APC interfaces should not be mated indiscriminately. On a duplex channel, the local transmit path must arrive at the remote receive path. Incorrect polarity can produce a completely dark link even when every component is healthy. Oriental Comms groups related termination options in its fiber optic connector range.
Fifth, check the full optical budget. Use the worst-case transmitter output, receiver sensitivity, connector loss, splice loss, fiber attenuation, passive-device loss, repair allowance, and design margin. Compare the result with both minimum received power and overload limits.
Plain-text planning formula: Available loss budget = minimum transmit power - receiver sensitivity.
Plain-text path formula: Estimated path loss = fiber loss + connector loss + splice loss + passive-component loss + engineering margin.
A design is viable only when estimated path loss stays within the available range and the maximum received power remains below the overload threshold.
The purchase price of two optical transceivers is a small part of many fiber projects. A better comparison includes cabling, termination, certification, spare inventory, technician training, planned outage time, and the probable next upgrade. Route construction can dominate total cost, especially outdoors or across production facilities.
Consider an existing-building scenario. If certified OM4 trunks already connect two equipment rooms and the next upgrade remains within the standard’s supported reach, multimode can be rational. Now consider a new interbuilding route with uncertain future speeds and several splice points. Single-mode may reduce long-term recabling risk even if the first pair of optics costs more.
Operations also matter. Standardizing one fiber mode across similar sites can simplify spares and reduce installation errors. However, standardization should not erase real application differences. A private network may use pluggable modules in the core and complete 4GE fiber transceivers at remote surveillance points. Documentation must show which device, fiber, wavelength, and connector belong to each route.
Many networks contain both SMF and MMF. The safest migration plan treats each link as an end-to-end channel and records fiber type, length, patch points, connector polish, loss test results, optic specification, and host configuration. Color alone should never be the sole identification method because field labeling can be wrong.
If a route must transition between fiber modes, use an engineered conversion point with equipment designed for that purpose. Do not create an undocumented hybrid by connecting a single-mode transmitter to a multimode trunk simply because light is detected. Such a link may appear to work on a bench and fail after temperature, aging, movement, or a minor loss increase.

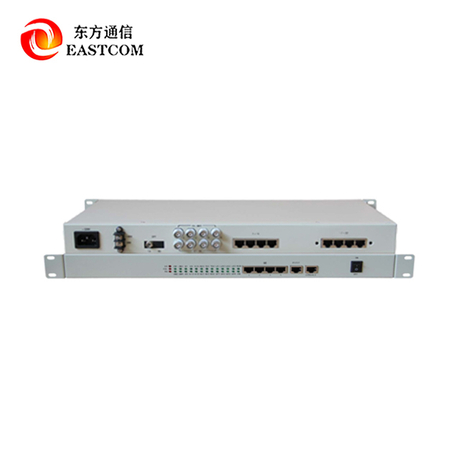

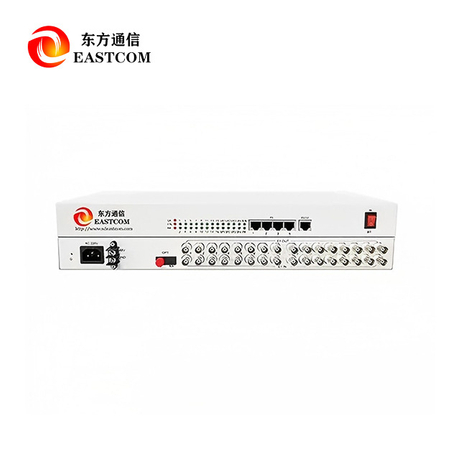

For networks carrying E1 or several service types, choosing SMF or MMF is only one layer. The service device must also match interface count, timing, Ethernet capacity, power, protection, and management needs. The PDH optical transceiver category illustrates why transport equipment selection cannot be reduced to the fiber label.
A controlled migration should include a known-good reference pair, cleaned and inspected connectors, pre-change power readings, rollback steps, and updated port records. That process is less dramatic than replacing equipment until a light appears, and much more reliable.
Start with the required service and data rate. Then document actual route length, fiber ownership, installed cable grade, number of connections, environmental conditions, and anticipated upgrades. Identify the host equipment and its permitted optical interfaces. Select a recognized optical standard, not a generic “10 km” or “multimode” description.
Next, calculate the budget and verify both endpoints. Decide whether single-fiber or dual-fiber operation is required. For WDM or BiDi links, document the wavelength pair. Confirm connector type and polish, power range, temperature rating, and diagnostics. Finally, define acceptance tests: module recognition, link establishment, receive power, error counters, traffic test, and failover behavior where applicable.
This framework prevents a frequent purchasing mistake: selecting the least expensive module that has the right nominal speed and connector. Those two fields describe only a fraction of the channel.
When requesting a quotation from Oriental Comms, provide the host model, service type, rate, fiber mode and grade, measured route length, connector polish, wavelength plan, required temperature range, and expected upgrade horizon. That information is far more actionable than asking for a generic single-mode or multimode unit.
Single-mode optical transceivers are generally the stronger choice for long routes, outside plant, and uncertain expansion; multimode units remain efficient for verified short channels and compatible installed cabling. Neither is inherently correct without the rest of the design. The dependable decision comes from matching the optical standard, host, fiber, wavelength, connectors, path loss, and future plan. Shandong Dongfang Communication Technology Co., Ltd. offers several optical device categories, but buyers should begin with a documented link requirement so the chosen product solves the actual transport task rather than merely fitting the port.
They should not be treated as a normal matched pair. Their launch conditions, receiver design, wavelengths, and intended fiber differ. Use matching optics and fiber, or an engineered conversion device when a network must cross modes.
No. Single-mode offers greater reach potential, but an existing certified multimode channel may be the most economical and operationally sensible choice for a supported short link.
No. Distance is a shorthand based on assumed fiber and loss conditions. Verify transmit power, receiver sensitivity, overload, wavelength, fiber type, connectors, patch points, and margin.
Common causes include reversed polarity, dirty end faces, a disabled or misconfigured port, incompatible module coding, mismatched wavelengths, the wrong fiber type, or received power outside the permitted range.
No. LC identifies the connector form. Fiber type, polish, cable grade, wavelength, and the optical specification must be checked separately.
The answer depends on route lengths, applications, upgrade horizon, pathway cost, equipment strategy, and local standards. Evaluate lifetime channel cost rather than comparing only today’s optics.
